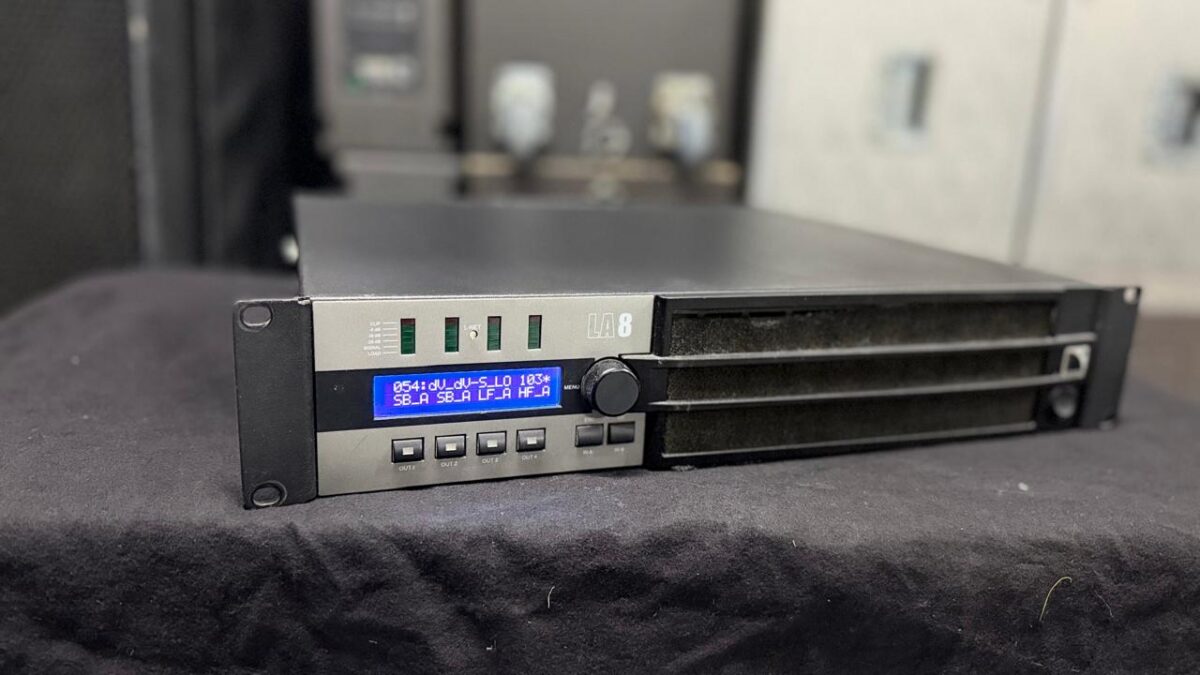

The L-Acoustics LA8 is a high-power amplified controller providing 4 x 1800W at 4 ohms, specifically designed for driving the brand’s large-format speaker systems. It features 96 kHz/32-bit DSP and a comprehensive factory preset library for everything from compact speakers to large line arrays like the K1.
Compatible Loudspeaker Systems
The LA8 includes a built-in library of presets for immediate use with various L-Acoustics enclosures:
- Line Arrays: K1, K1-SB, KUDO, KARA, and ARCS II.
- Subwoofers: High-power units such as SB28, SB18, and legacy SB118/SB218.
- Coaxials: 115XT HiQ and other legacy XT models.
- Legacy Products: V-DOSC, dV-DOSC, dV-SUB, and original ARCS.
Key Features
- L-DRIVE System Protection: Real-time monitoring of voice coil temperature and cone displacement to ensure maximum reliability.
- Network Remote Control: Dual Ethernet ports allow monitoring and control of up to 253 units via the LA Network Manager software.
- AES/EBU Support: Standard digital audio input board for high-fidelity signal distribution.
- User Interface: Front-panel LCD and encoder wheel for rapid access to gain, delay, polarity, and preset selection.

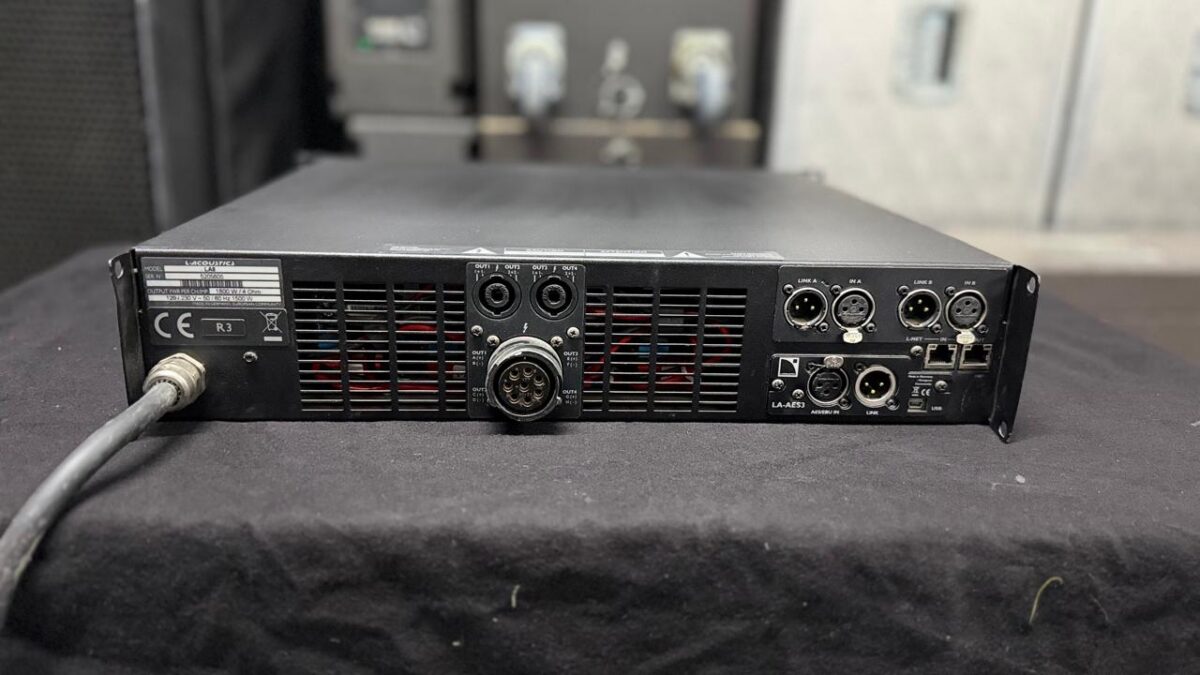

Key Functions of the AES Card
- Digital Connectivity: It provides one AES/EBU stereo input and one “Thru” port, allowing you to daisy-chain the digital signal to multiple amplifiers without degradation.
- Automatic Fallback: The card features an “Analog Fallback” option. If the digital AES signal is lost (due to cable failure or clock loss), the amplifier instantly switches to the analog inputs to prevent audio silence.
- Sample Rate Conversion (SRC): It includes a high-quality hardware converter that automatically adapts various digital sample rates (from 44.1 kHz up to 192 kHz) to the amplifier’s internal 96 kHz processing.
- Failsafe Relay: The “Thru” port is electronically buffered but also includes a failsafe relay, ensuring that the digital signal continues to pass to the next amplifier even if the current unit loses power.
Benefits of Using AES/EBU
- Lower Noise Floor: By keeping the signal digital, you eliminate the hum and interference often picked up by long analog cable runs.
- Increased Fidelity: Reducing the number of Digital-to-Analog (D/A) and Analog-to-Digital (A/D) conversion stages preserves the original dynamic range and clarity of the audio.
- Long-Distance Stability: AES3 signals can be transmitted over distances up to 300 meters (using certified 110-ohm cables) without the high-frequency loss typical of long analog cables
