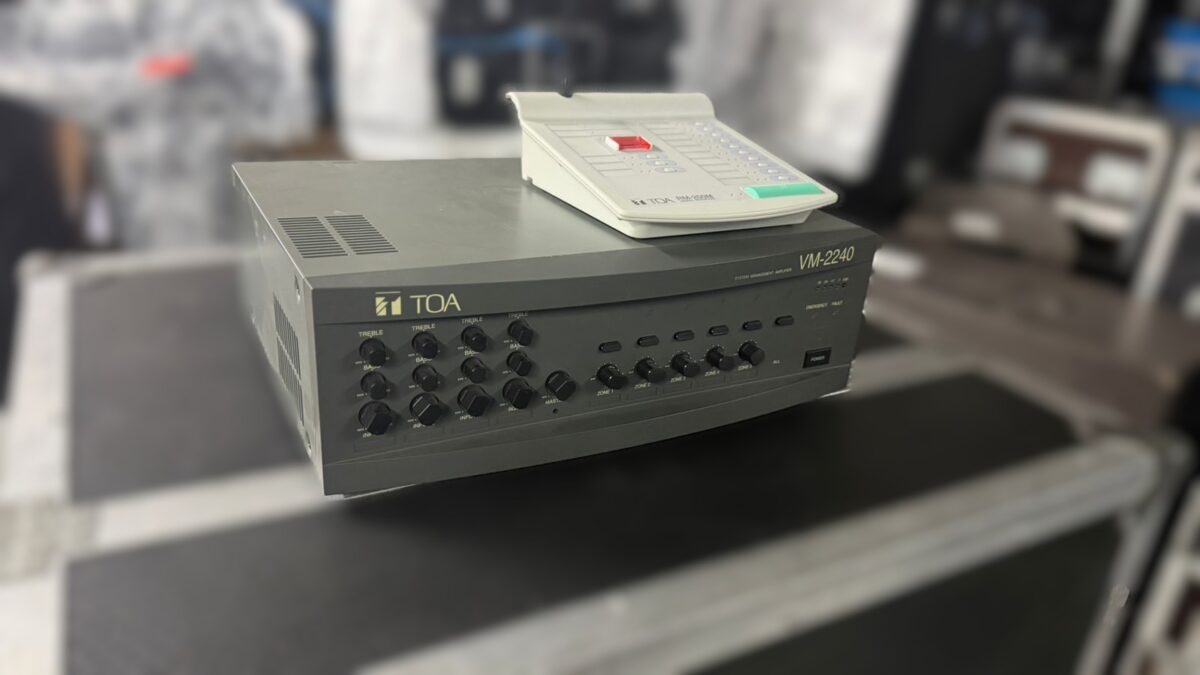

The TOA VM-2240 is a 240W multifunctional system management amplifier part of the TOA VM-2000 Series. It is specifically designed for public address, background music, and emergency broadcasts in medium-sized facilities like offices, factories, and hospitals.

• Rated Power Output: 240W total.
• Speaker Zones: 5 switchable high-impedance (100V) zones with individual attenuators.

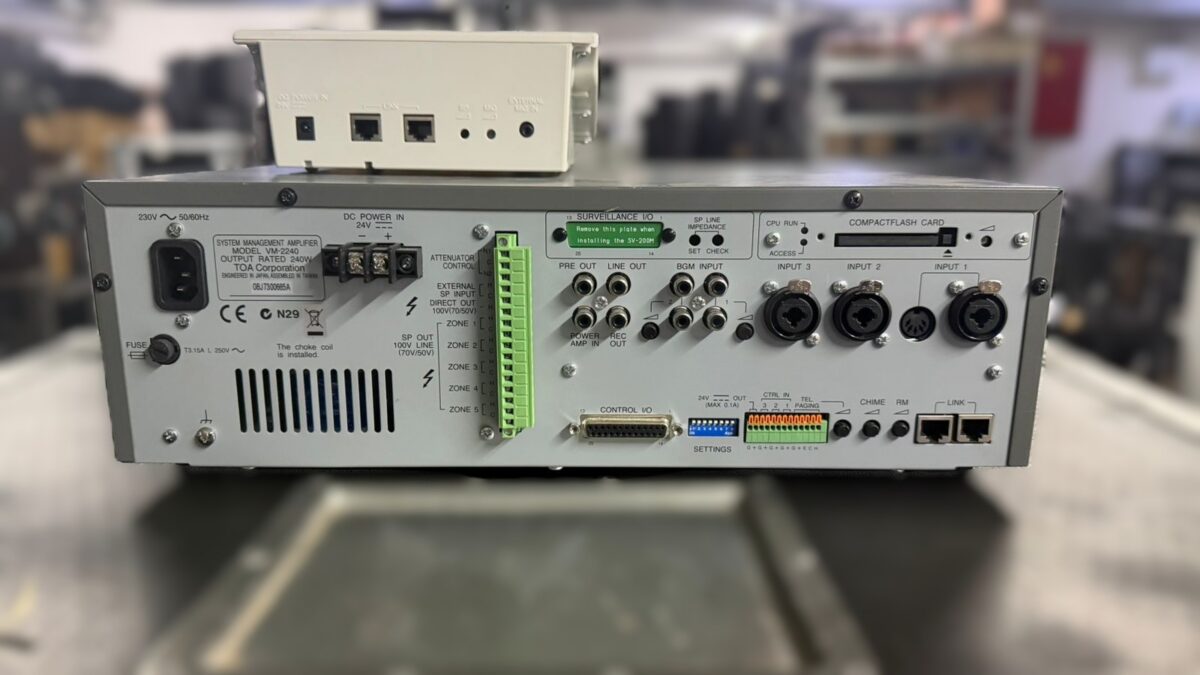

• Inputs:
  • 3 x Mic/Line inputs (balanced XLR/phone combo jacks).
  • 2 x BGM (Background Music) inputs (stereo RCA).
  • 1 x Telephone paging input.
• Expandability: Up to 9 units can be linked to increase total power and support up to 45 zones.
• Mounting: Standard 19-inch rack-mountable (requires 3U space).

• Emergency Broadcasting: Conforms to standard voice evacuation requirements and can provide pre-recorded instructions (requires optional EV-200M board).
• Remote Management: Compatible with the RM-200M Remote Microphone for paging and emergency announcements.
• System Surveillance: Can automatically check for failures with the optional SV-200MA surveillance board.
• Built-in Chimes: Includes 4 internal chime sounds for routine announcements.

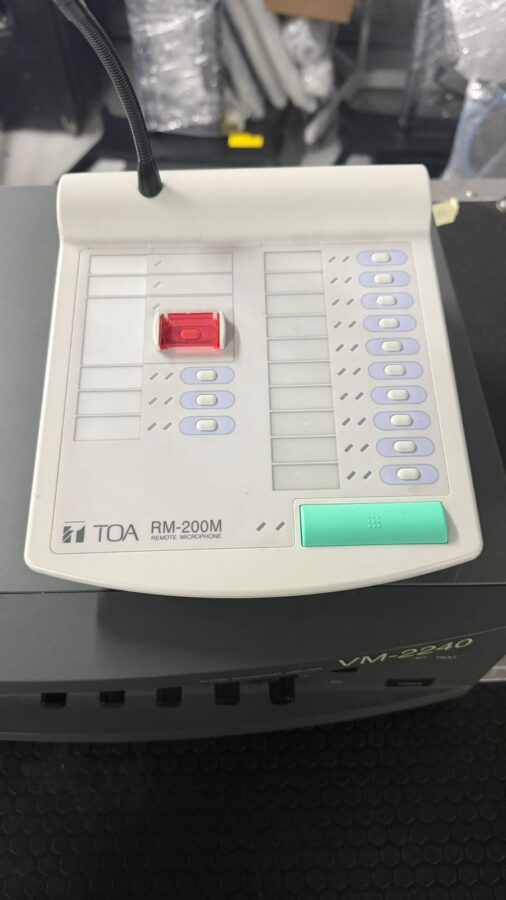

The TOA RM-200M is the dedicated remote microphone for the VM-2240 amplifier, allowing you to make both general and emergency announcements to specific speaker zones from a remote location.

• Zone Control: The RM-200M features 11 buttons (10 assignable) that allow you to select individual zones, groups, or “all-call” for paging.
• Capacity: You can connect up to 4 RM-200M units to a single VM-2240 amplifier.
• Distance: The system supports a total cable length of up to 800 meters (approx. 2,625 feet) between the amplifier and the furthest microphone.
• Expansion: If you need more than 10 zone buttons, you can attach up to four RM-210 extension units to a single RM-200M.
• Audio Quality: It includes a built-in compressor circuit to ensure clear, distortion-free voice transmission.

• Cable Requirement: Use Category 5 Shielded Twisted-Pair (STP) cable with RJ45 connectors.
• Power: The VM-2240 provides power directly to one RM-200M. If you connect multiple microphones or use long cable runs, you may need an external AD-246 AC adapter for secondary units.
• Emergency Mode: The microphone features an “Emergency” indicator that lights red when the system is in emergency mode, and a “Fault” indicator that flashes if communication with the amplifier is lost.
