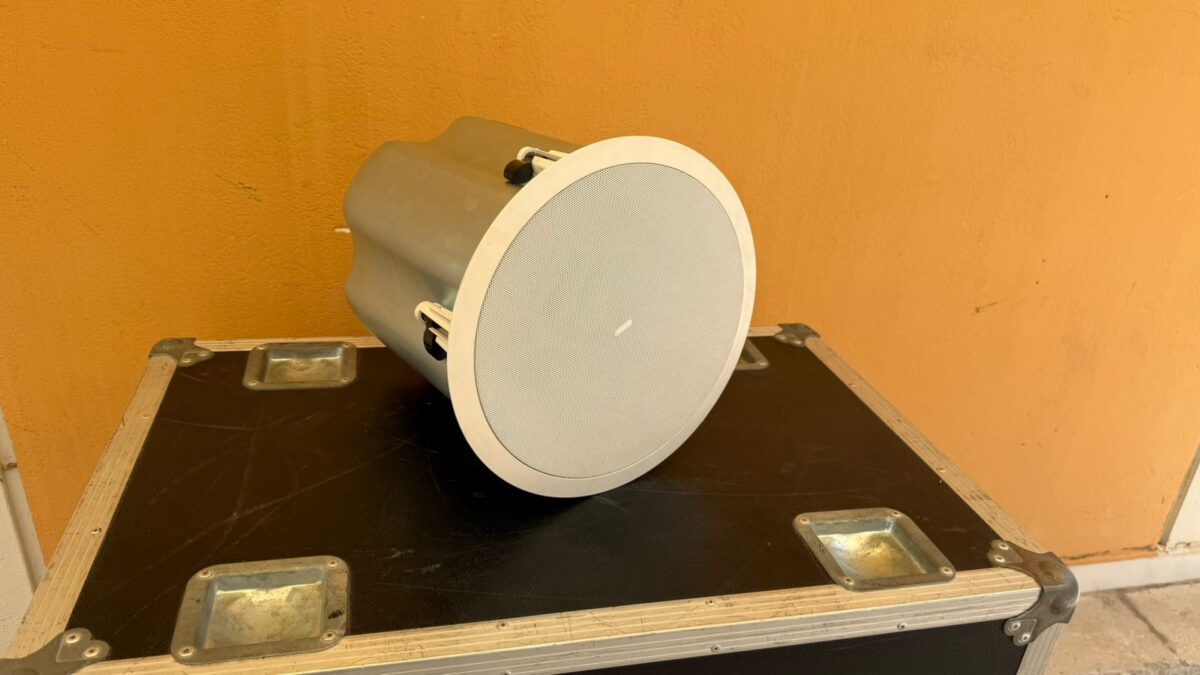

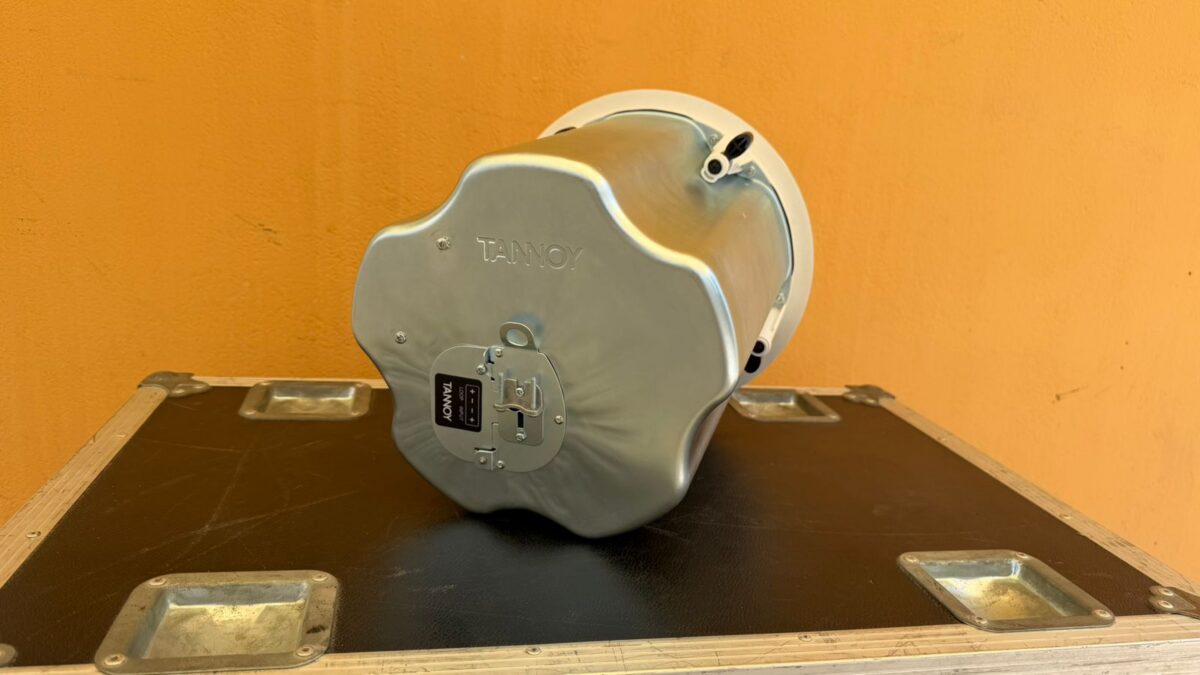

The Tannoy CMS 803DC is a high-performance 8-inch ceiling loudspeaker part of the CMS 3.0 Series. It features Tannoy’s signature Dual Concentric driver technology, which provides a single point source for consistent sound dispersion and high intelligibility.
Core Specifications
- Driver: 8-inch (200 mm) Dual Concentric driver with Omnimagnet technology and Torus Ogive Waveguide.
- Power Handling: 90W (Average), 180W (Program), 360W (Peak).
- Performance:
- Frequency Response: 47 Hz – 30 kHz (-3 dB).
- Sensitivity: 92 dB (1 W @ 1 m).
- Max SPL: 118 dB (Peak).
- Impedance: 16 Ohms (allows for wiring multiple speakers to a single amp channel).
- Transformer Taps: Built-in 60W transformer for 70V/100V systems with front-bezel rotary switch (60W, 30W, 15W, 7.5W).
