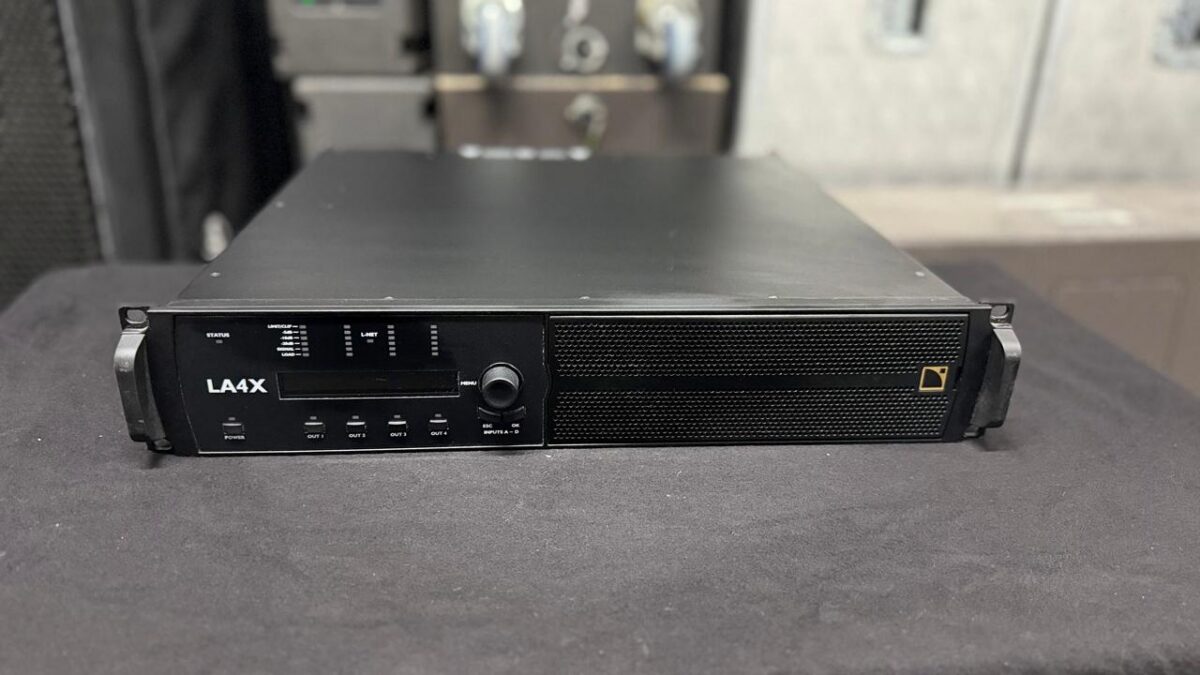

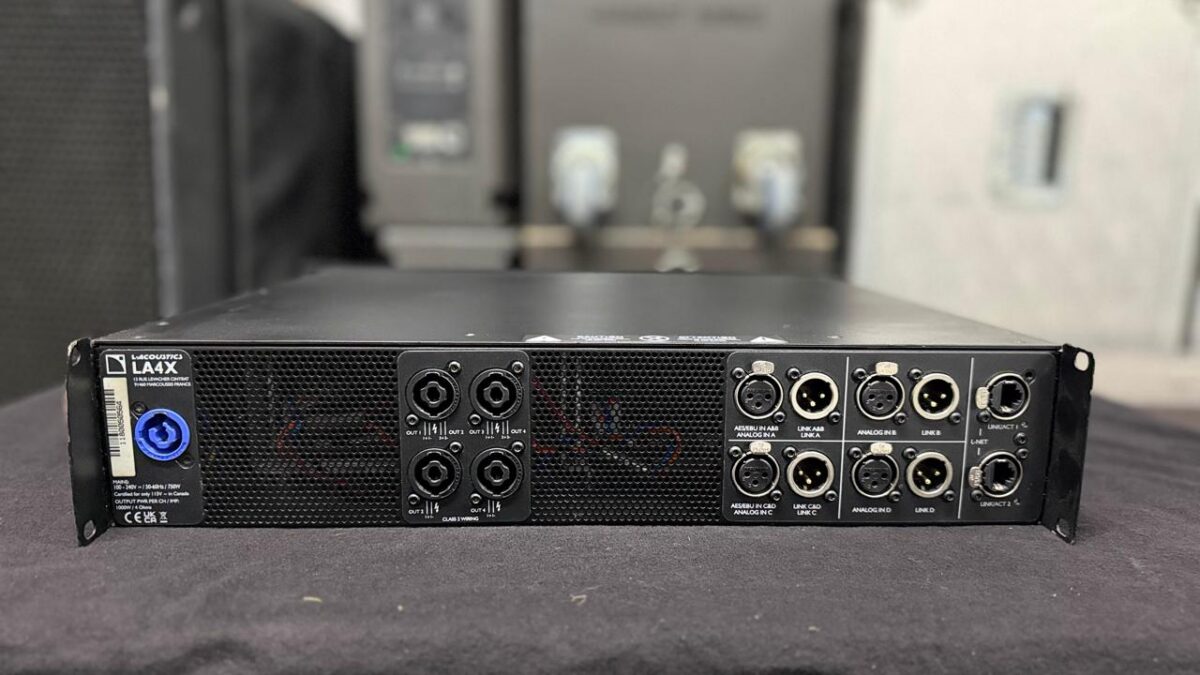

The L-Acoustics LA4X is a high-performance amplified controller that combines 4×4 amplification, 96 kHz/32-bit DSP, and networking into a single 2U rack unit. It is designed to drive L-Acoustics loudspeaker systems with precision, offering 1,000 W of power per channel at both 8 and 4 ohms.
Compatible Loudspeaker Systems
The LA4X is designed to drive almost any L-Acoustics enclosure, from compact coaxial speakers to smaller line arrays:
- Coaxial Series: Ideal for the X Series (X8, X12, 5XT) and legacy MTD or P Series.
- Line Sources: Can drive Kara (II), Kiva II, and A Series (A10, A15).
- Subwoofers: Frequently paired with SB15m, SB18, and KS21.
- Large Formats: In “Full Active” mode, it can even drive sections of larger arrays like K2 for maximum discretization.
Key Features
- Three Connectivity Modes: Operates in “a la carte” (one-to-one for passive speakers), “full active” (discrete drive for active speakers), or “conventional” (parallel-driven speakers) modes.
- Advanced EQ Station: Includes 8 IIR and 3 FIR filters per output, plus exclusive Array Morphing and air absorption compensation tools.
- Network Control: Full integration with LA Network Manager for real-time monitoring and control of up to 253 units.
- Green Power: Features Power Factor Correction (PFC) that allows it to deliver full power on only a 20A (120V) or 10A (230V) circuit.
