The Electro-Voice XW15A is a premium, professional-grade 15-inch two-way, full-range bi-amped floor monitor designed for high-output concert touring and demanding live stage applications. Part of EV’s renowned X-Array series, it is engineered to deliver extreme clarity, high sound pressure levels, and excellent feedback resistance for performers on stage.

Key Technical Specifications

According to the official Electro-Voice Product Documentation, the monitor features the following specifications:

• Low-Frequency Transducer: EVX155 15-inch woofer • 4.0-inch voice coil • Kevlar pulp cone for durability and damping.
• High-Frequency Transducer: ND6-16 neodymium compression driver • 3-inch titanium diaphragm • 1.4-inch exit.
• Horn Coverage: 80° x 55° constant-directivity flat-front horn.
• Crossover Frequency: 1,250 Hz (optimized for vocal and instrument mid-range clarity).
• Power Handling: 600 Watts LF / 75 Watts HF long-term.
• Cabinet Design: 18-mm void-free 13-ply plywood shell • 55° concert stage monitor angle • Textured black finish.

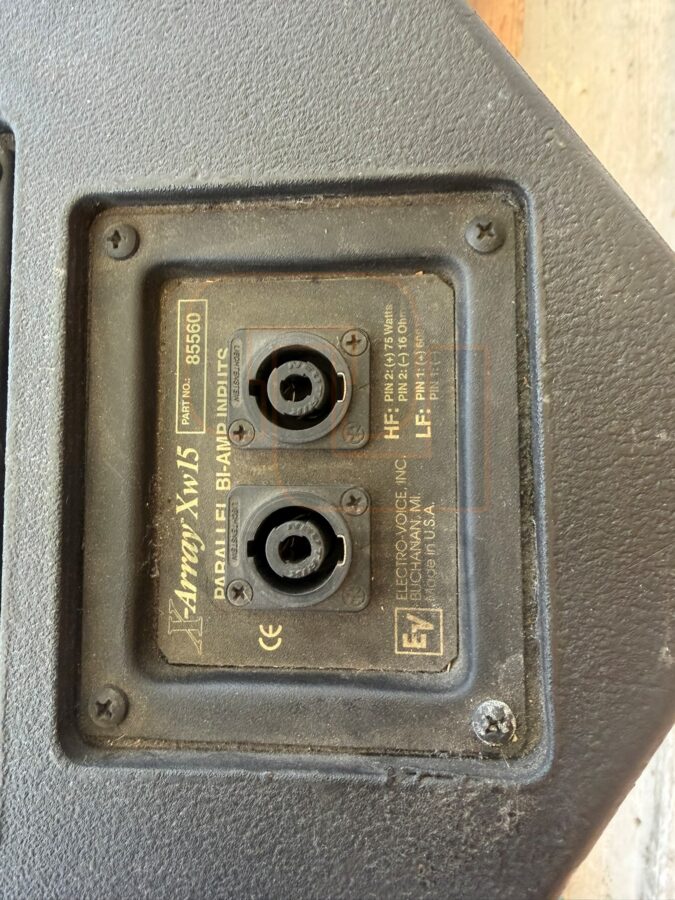

• Connectivity: Dual Neutrik Speakon connectors parallel-passed through on both sides for seamless daisychaining.
