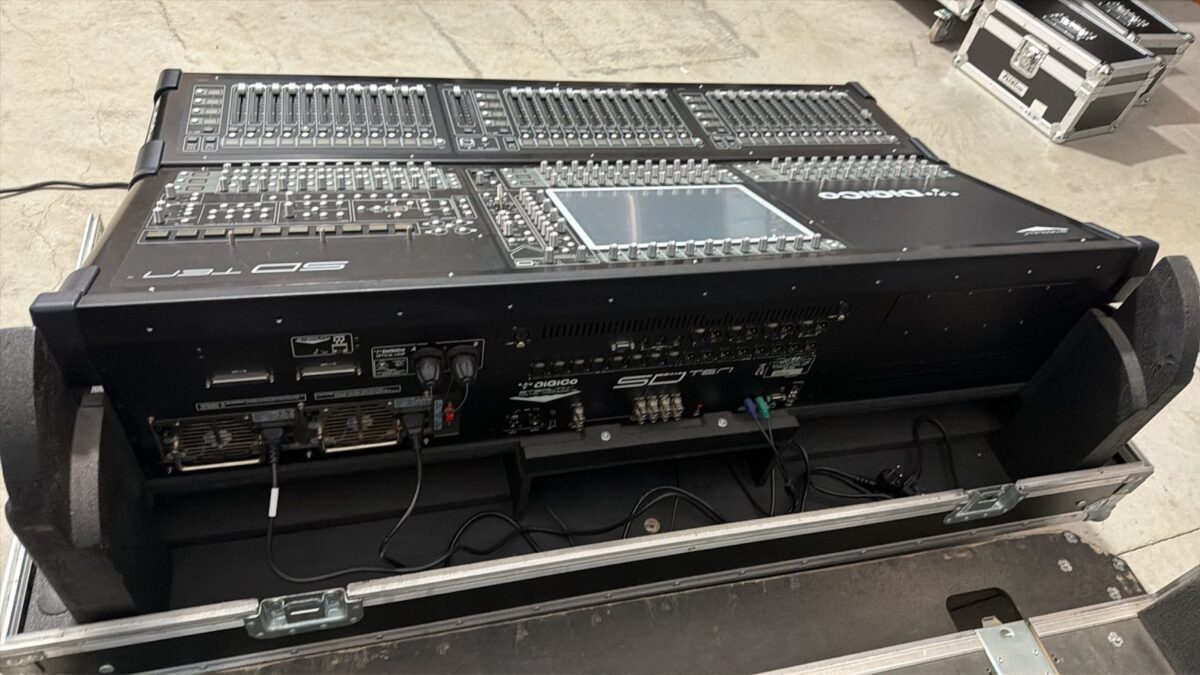

The DiGiCo SD10 is a digital industry standard mixer highly favored by live sound, broadcast, and theatre engineers worldwide. Powered by Stealth Digital Processing and floating-point Super FPGA technology, it delivers massive audio horsepower derived from DiGiCo’s flagship architectures.
Key Specifications
- Processing: Supports 144 input channels, 64 Aux/Sub-Group busses, and a 24 x 24 matrix, all with full processing capability.

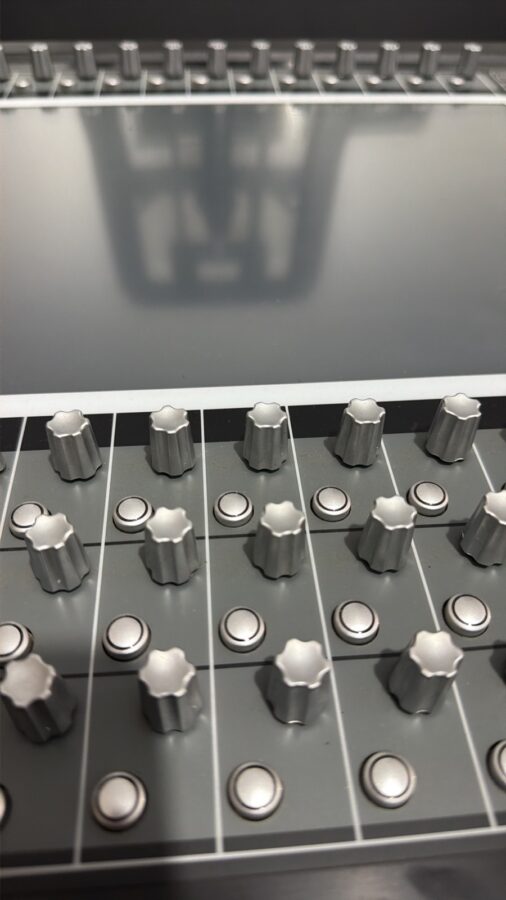

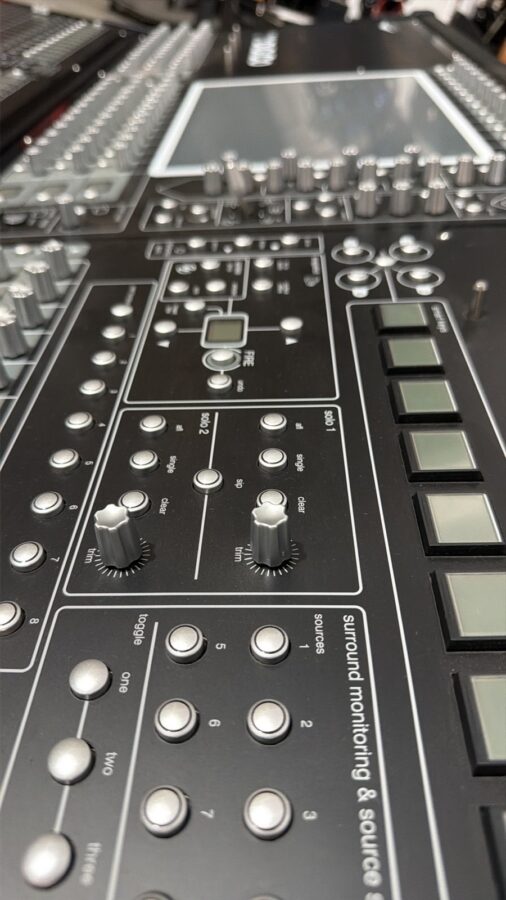

- Control Surface: Features 37 physical motorized faders (divided into three banks of 12 plus one master fader) and high-resolution LED bar graph meters for every fader.
- Visual Interface: Equipped with a centrally located 15-inch backlit TFT touchscreen for rapid navigation and control adjustment.
- Audio Quality: Runs at standard 48kHz or 96kHz sample rates and includes 218 dynamic equalizers.

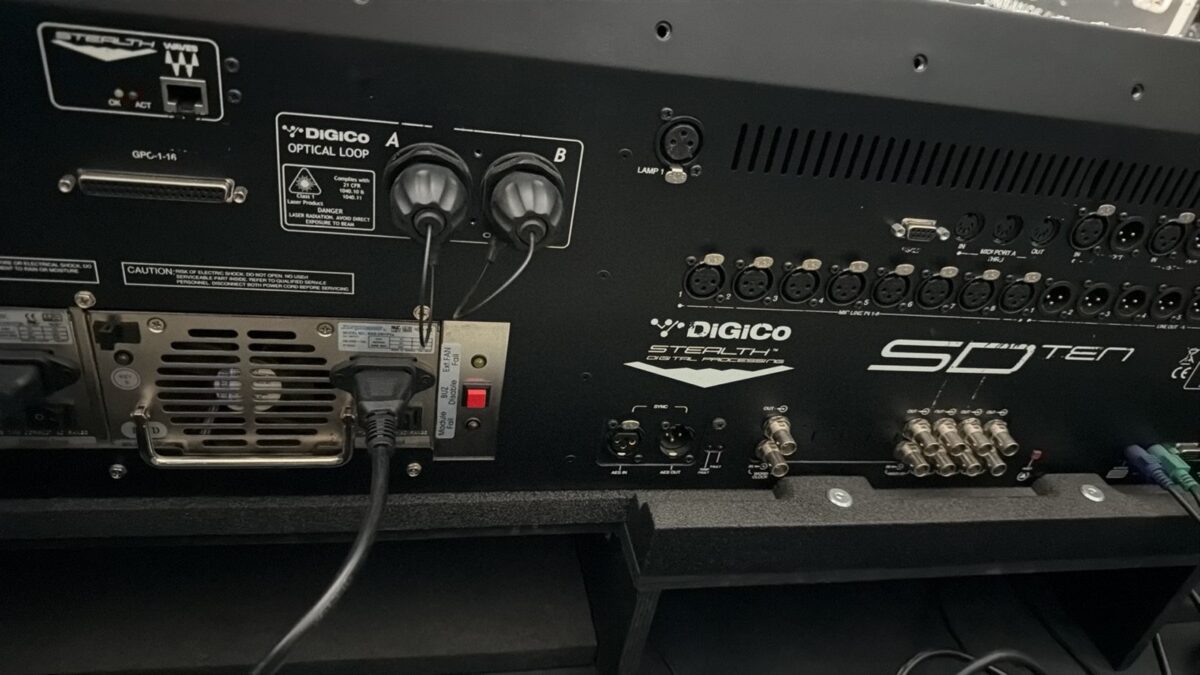

- Local I/O: Built with 8 local microphone inputs, 8 local outputs, 3 AES pairs, and MADI connectivity.
