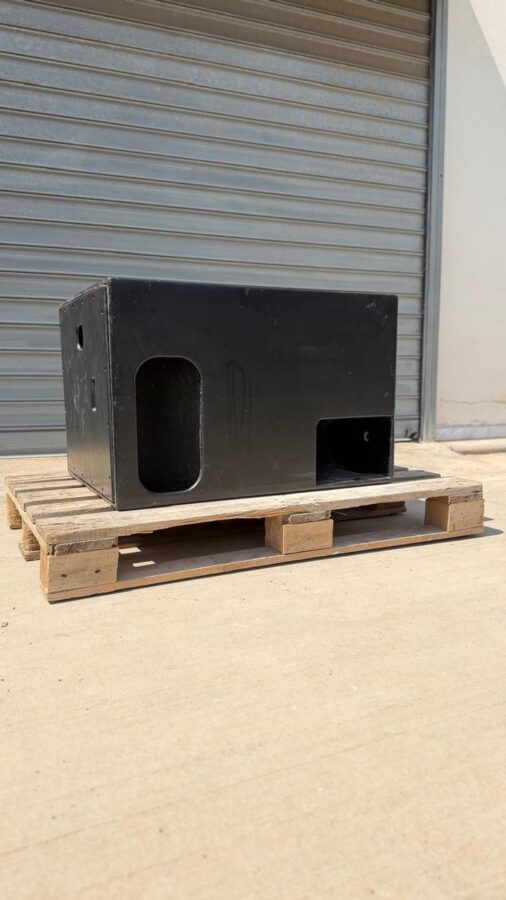

The Nexo LS1200 is a classic high-power, sub-bass speaker designed specifically to extend the low-frequency performance of the PS15 loudspeaker. Known for its efficiency and deep impact, it is a staple in touring and fixed installation systems where a high power-to-size ratio is required.
System Design and Operation
- Controller Requirement: The LS1200 must be used with a dedicated Nexo Controller, such as the PS15 TD MkII (analogue) or the NX241/NX242 (digital), to ensure linear operation and protect the driver from damage.
- Loudspeaker Pairing: Typically deployed in a ratio of one LS1200 for every two PS15 tops.
- Cabling: Features two 4-pole speakON connectors; it is typically wired to 1+/1- while the PS15 tops are wired to 2+/2-, allowing a single cable to carry signals for both.
- Versatile Mounting: Includes a 35mm (1 3/8″) pole mount on top to support a PS15 and three steel anchor points for flying tracks.
Recommended Amplification
- Power: 800 to 1,200 Watts into 4
- Modern Integration: Can be driven by Nexo NXAMP4x1mk2 or NXAMP4x2mk2 controllers which provide built-in presets and advanced protection
