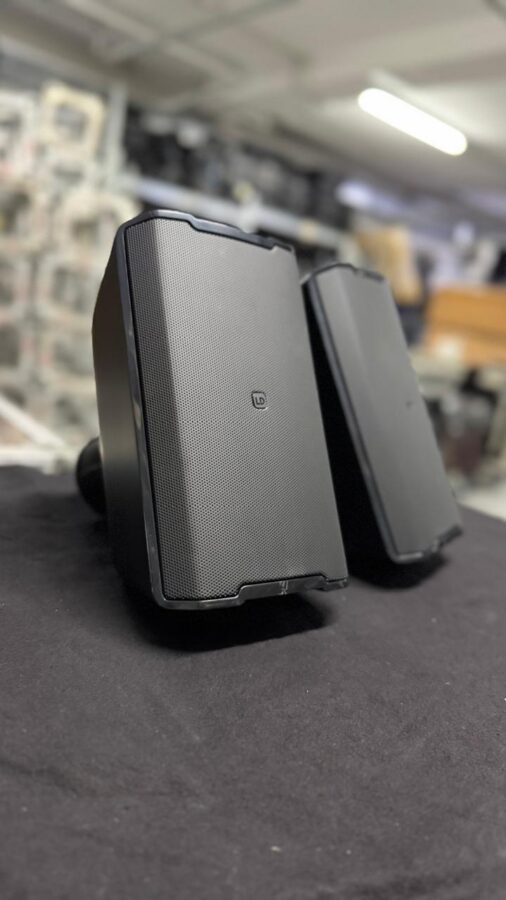

The LD Systems DQOR 5 T B is a 5-inch, two-way passive installation loudspeaker featuring a multi-tap transformer for 70V/100V systems and a 16-ohm low-impedance mode. Designed for both indoor and outdoor use, it is distinguished by its “B” (Black) finish and a versatile “slide-and-lock” mounting system.
Installation & Durability
- IP55 Rating: Certified protection against dust and water jets, making it suitable for beach bars, cruise ships, or hotel patios.

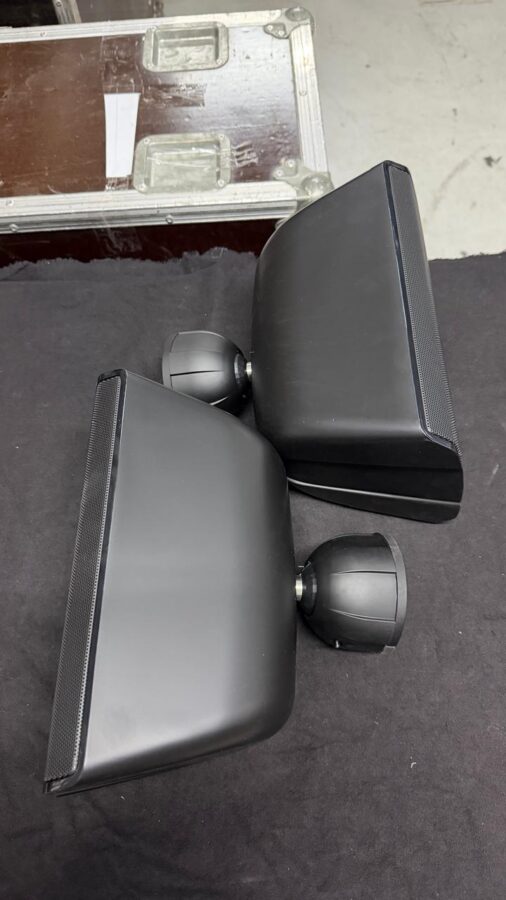

- Integrated Connectivity: The DQOR 5 T B uses a specialized wall mount where speaker cables connect directly to the bracket, allowing the speaker to slide on and lock without visible wiring.
- Adjustability: Supports a tilt angle of up to 27° and a horizontal swivel of 45°.
- Build: Constructed from UV-resistant ABS plastic with a corrosion-resistant aluminum grille.
Transformer Taps & Connection
The unit includes an input selector switch to toggle between high and low impedance:
- 100V / 70V Taps: 70W, 30W, 15W, 7.5W, and 3W.
- 16-Ohm Mode: Allows parallel connection of up to eight speakers on a single 2-ohm stable amplifier
