The LAB GRUPPEN FP 10000Q is a high-power professional 4-channel touring amplifier designed for demanding PA, line-array, monitor and bi-/tri-amped systems. It combines very high power density with a compact 2U rack format and NomadLink network monitoring/control.
Main specifications
| Specification | FP 10000Q |
|---|---|
| Channels | 4 |
| Total peak output | 10,000 W |
| Power @ 16 Ω | 4 × 660 W |
| Power @ 8 Ω | 4 × 1,300 W |
| Power @ 4 Ω | 4 × 2,100 W |
| Power @ 2 Ω | 4 × 2,500 W |
| Bridged @ 16 Ω | 2 × 2,600 W |
| Bridged @ 8 Ω | 2 × 4,200 W |
| Bridged @ 4 Ω | 2 × 5,000 W |
| Peak output voltage | 150 V/channel |
| Max. output current | 50 A peak/channel |
| Frequency response | 6.8 Hz – 34 kHz |
| THD | <0.1% @ 20 Hz–20 kHz |
| THD @ 1 kHz / 1 dB below clipping | <0.05% |
| S/N ratio | >112 dBA |
| Input impedance | 20 kΩ |

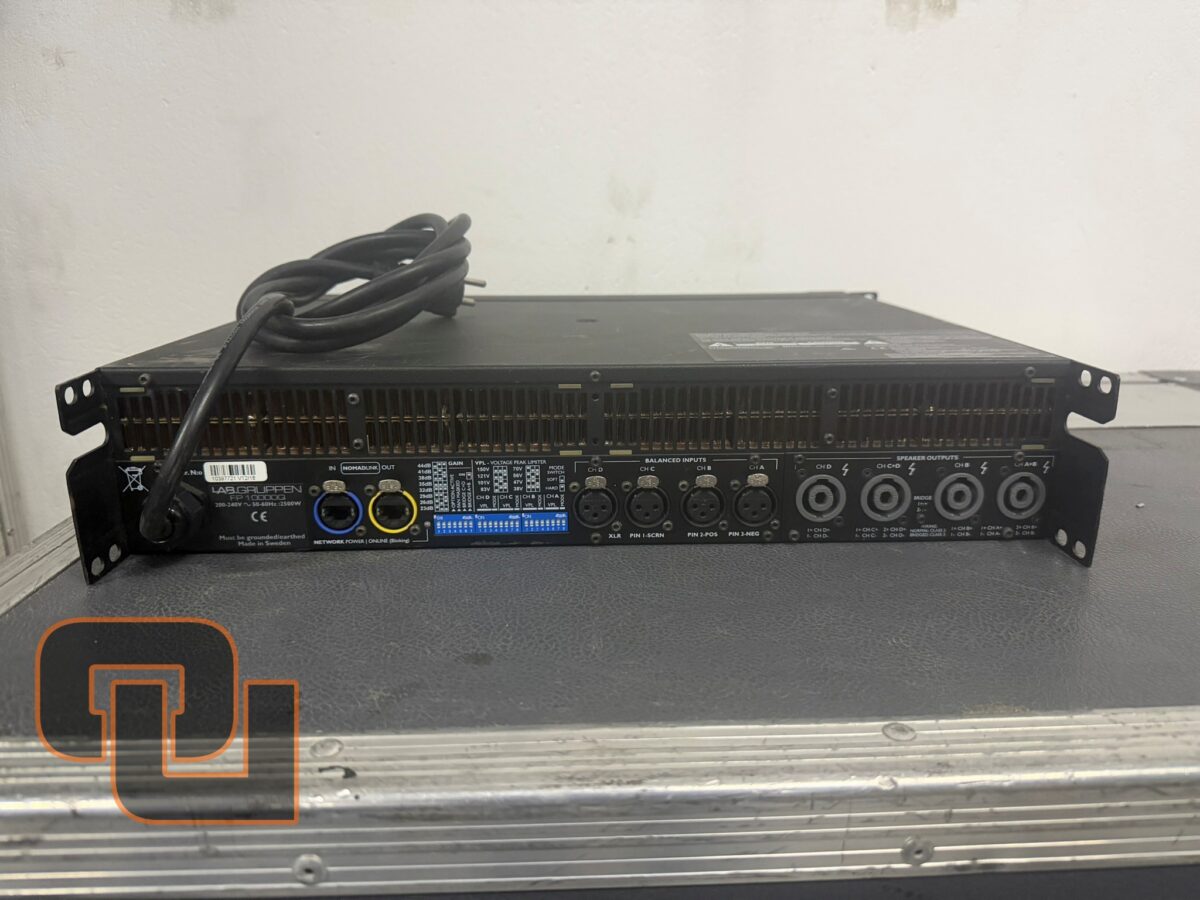

| Inputs | 4 × electronically balanced XLR |
| Outputs | Speakon or binding post, depending on version |
| Network | NomadLink, 2 × RJ45 EtherCON |
| Cooling | 2 × temperature-controlled fans, front-to-rear |
| Rack size | 2U / 19″ |
| Dimensions | 483 × 88 × 396 mm |
| Weight | 12 kg |
Specifications are based on LAB GRUPPEN’s technical documentation.
Key features
- 4 independent amplifier channels in only 2U.
- Up to 4 × 2,500 W @ 2 Ω.
- Class-D / proprietary high-efficiency output topology with regulated switch-mode power supply.
- Bridgeable adjacent channels, allowing 2- or 3-channel configurations.
- NomadLink network for remote monitoring and control.
- Individual Voltage Peak Limiter (VPL) settings.
- Selectable Hard/Soft limiting.
- Comprehensive protection against over-current, DC, short circuit, high temperature, VHF and mains problems.

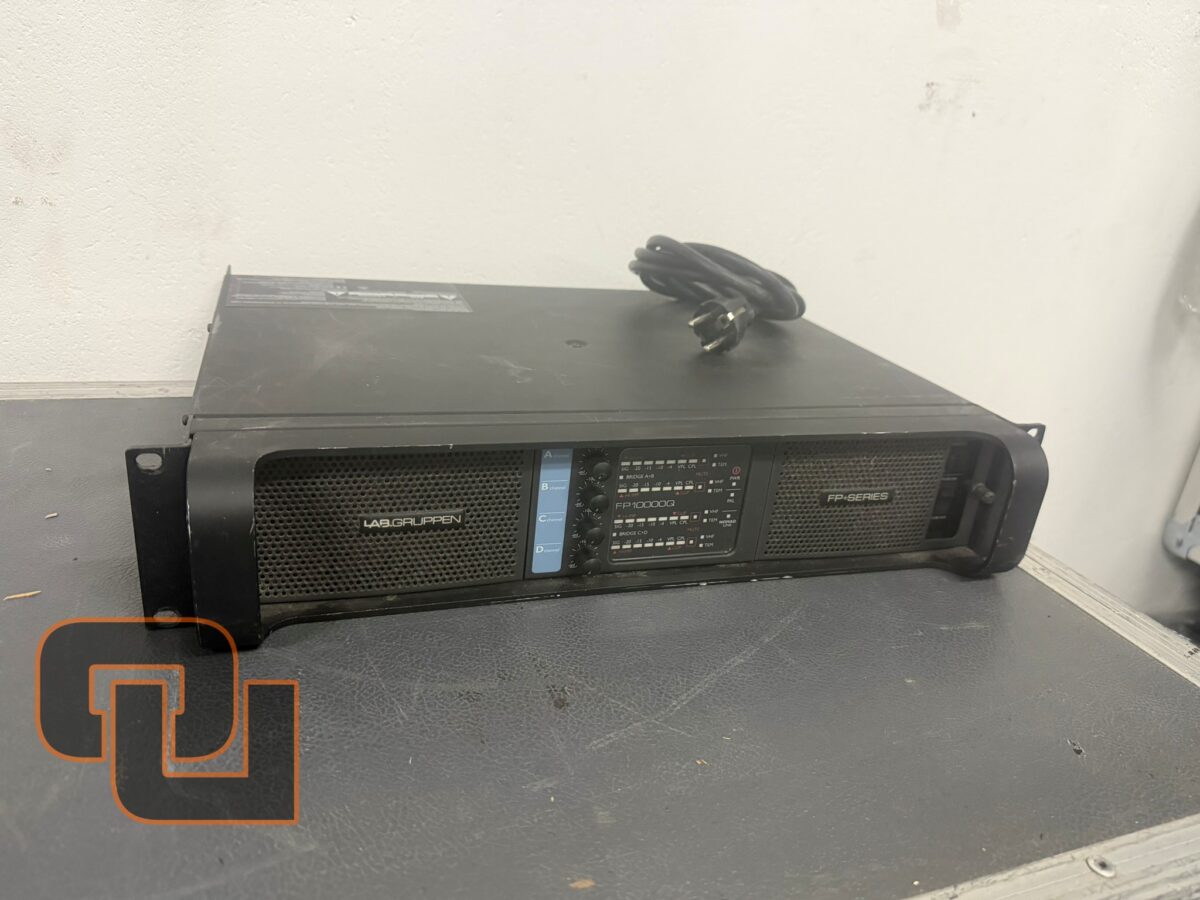

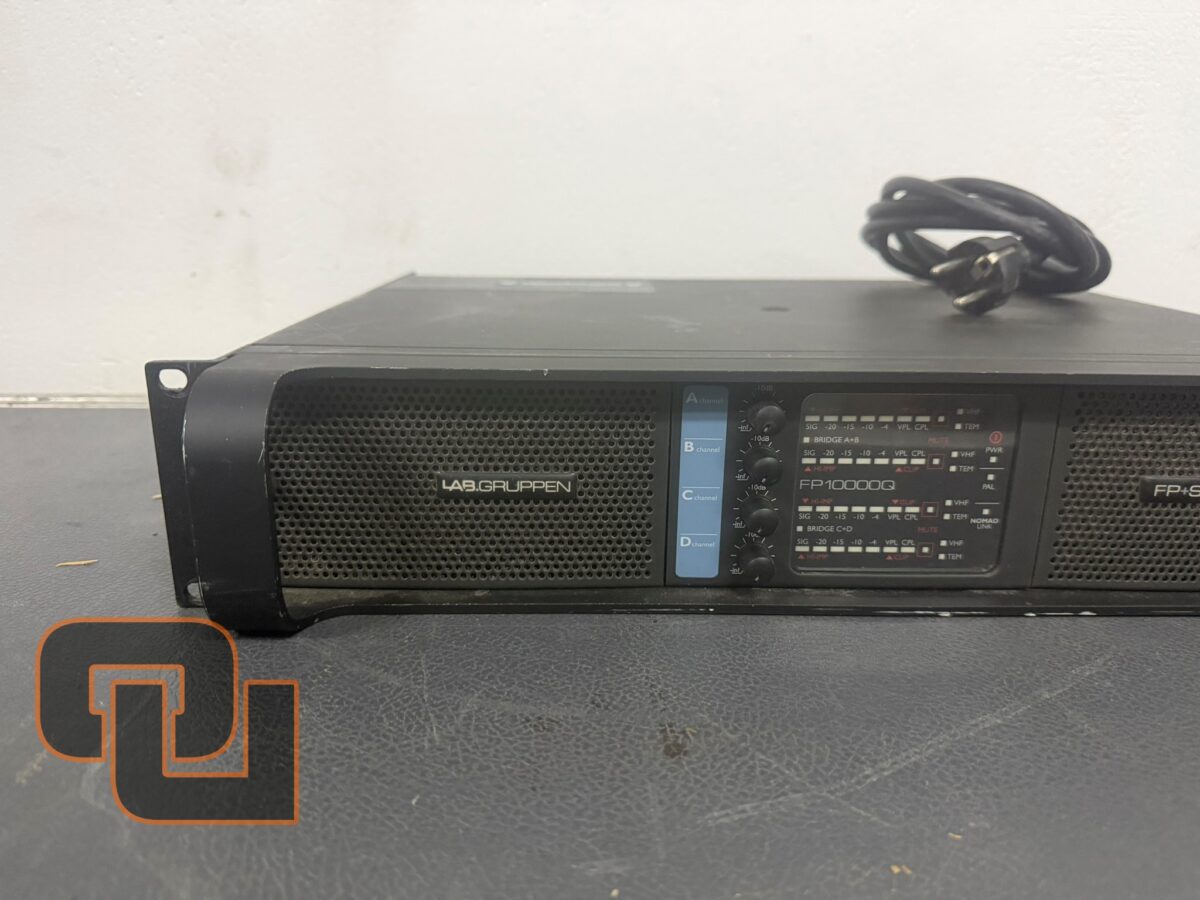

- Front-panel monitoring of signal, limiter, current, temperature, fault and mute status.
NomadLink
The FP 10000Q is particularly useful in professional rental/touring environments because its NomadLink network allows monitoring and remote control of amplifier parameters, including power, channel mute and operating status, when connected to the appropriate network bridge/software.
Professional applications
The FP 10000Q is well suited for:
- Line-array systems
- High-power PA systems
- Subwoofer amplification
- Stage monitors
- Bi-amped and tri-amped systems
- Touring and rental companies
- Large-scale events
- Fixed installations
Short sales description
LAB GRUPPEN FP 10000Q is a professional 4-channel touring amplifier delivering up to 10,000 W total output in a compact 2U chassis. With 4 × 2,100 W @ 4 Ω, 4 × 1,300 W @ 8 Ω, bridge operation, NomadLink network monitoring, VPL limiting and comprehensive protection, it provides exceptional power density and reliability for professional PA, touring, line-array and rental applications.
