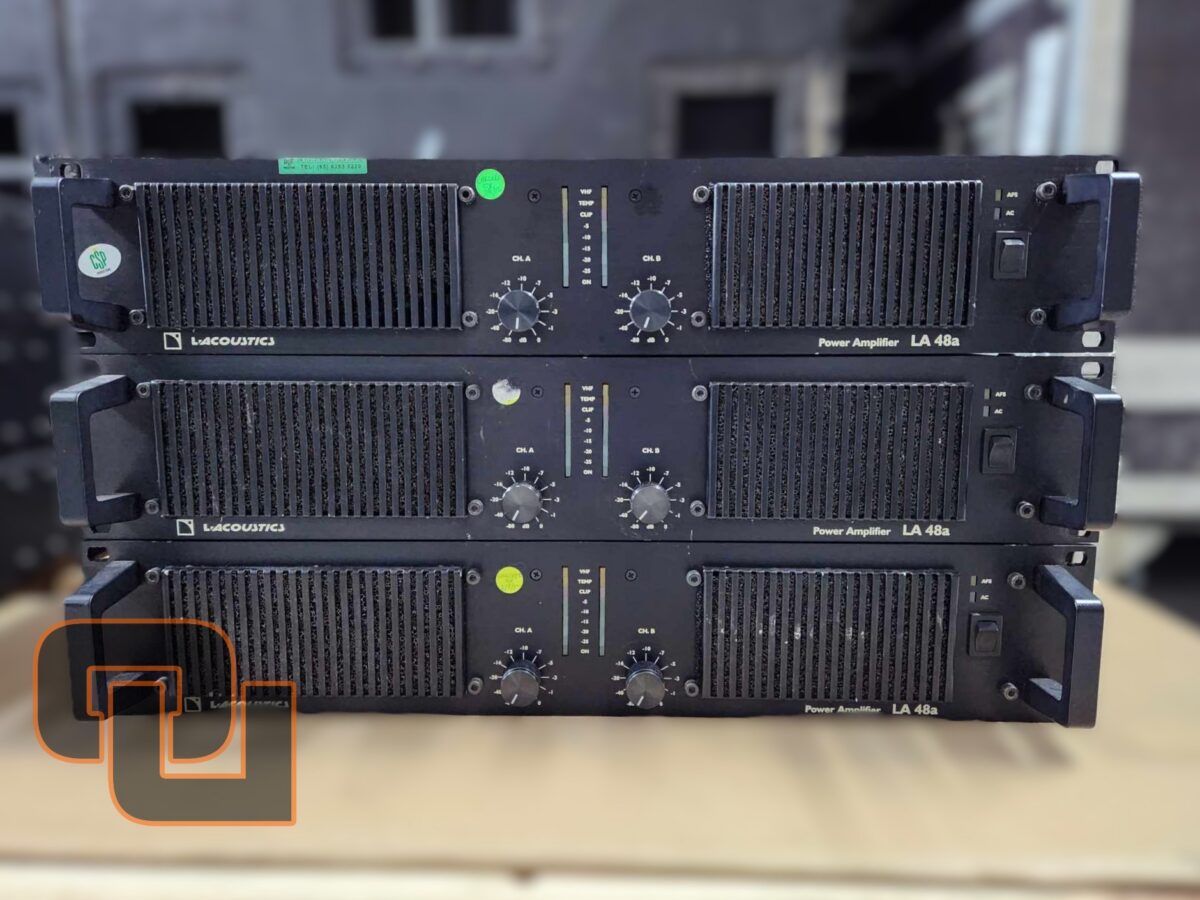

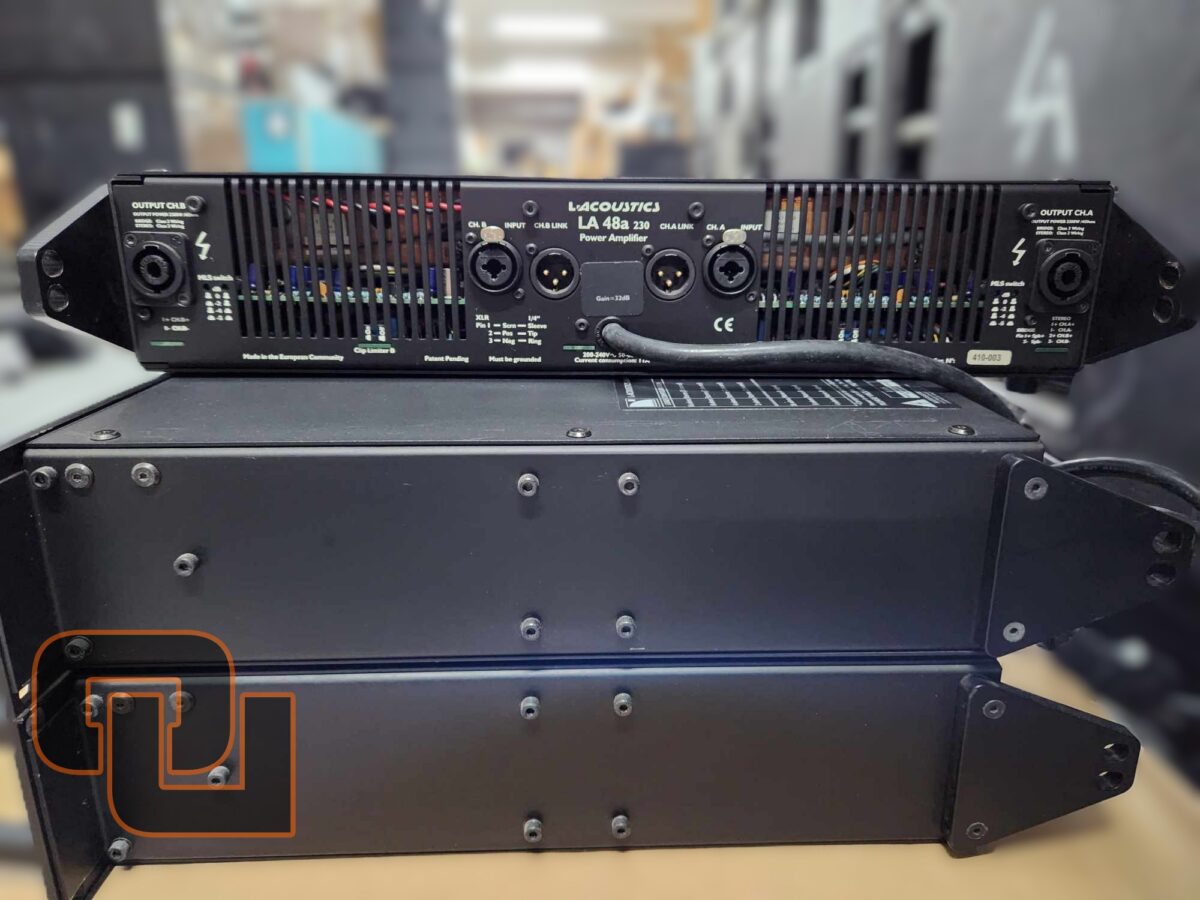

he L-Acoustics LA48a is a professional 4-channel touring power amplifier, developed for high-power live sound reinforcement and historically used extensively with L-Acoustics passive systems. It is an older-generation amplifier and is now discontinued, but remains relevant on the used market.
Key specifications
| Specification | LA48a |
|---|---|
| Type | 4-channel power amplifier |
| Amplification | High-power touring amplifier |
| Output @ 8 Ω | Up to 1,300 W/ch |
| Output @ 4 Ω | Up to 2,300 W/ch* |
| Output @ 2 Ω | Up to 2,900 W/ch* |
| Channels | 4 |
| Protection | Advanced protection / AFS |
| Application | Touring, live sound, installed systems |
| Form factor | 2U rackmount |
| Generation | Older L-Acoustics amplification platform |
| Typical use | L-Acoustics passive loudspeaker systems |
The published LA48a manual specifies maximum output figures of 1,300 W/ch at 8 Ω, 2,300 W/ch at 4 Ω and 2,900 W/ch at 2 Ω, with the higher-impedance figures subject to the amplifier’s protection system and operating conditions.
Important characteristics
High-current output:
The LA48a was designed to deliver substantial power into low-impedance loads, making it particularly suitable for demanding subwoofer and low-frequency applications.
4-channel architecture:
Unlike many conventional touring amplifiers of its era, it provides four independent amplifier channels in a 2U chassis.
Protection:
It incorporates L-Acoustics’ protection approach, including AFS (Active Front-end Switching) protection. At very high output levels/low impedances, the protection system can reduce available output power.
Touring-oriented construction:
It was designed for professional touring environments, with a rugged rackmount chassis and substantial power supply.
Power figures in practice
One important point when selling or specifying the LA48a is that the maximum output figure is not the same as its continuous program power.
For example, the manual gives:
- 8 Ω: 1,300 W/ch maximum
- 4 Ω: 2,300 W/ch maximum*
- 2 Ω: 2,900 W/ch maximum*
The manual also gives lower figures for sustained 1/3-power and 1/8-power operation, reflecting real-world power distribution and thermal considerations.
