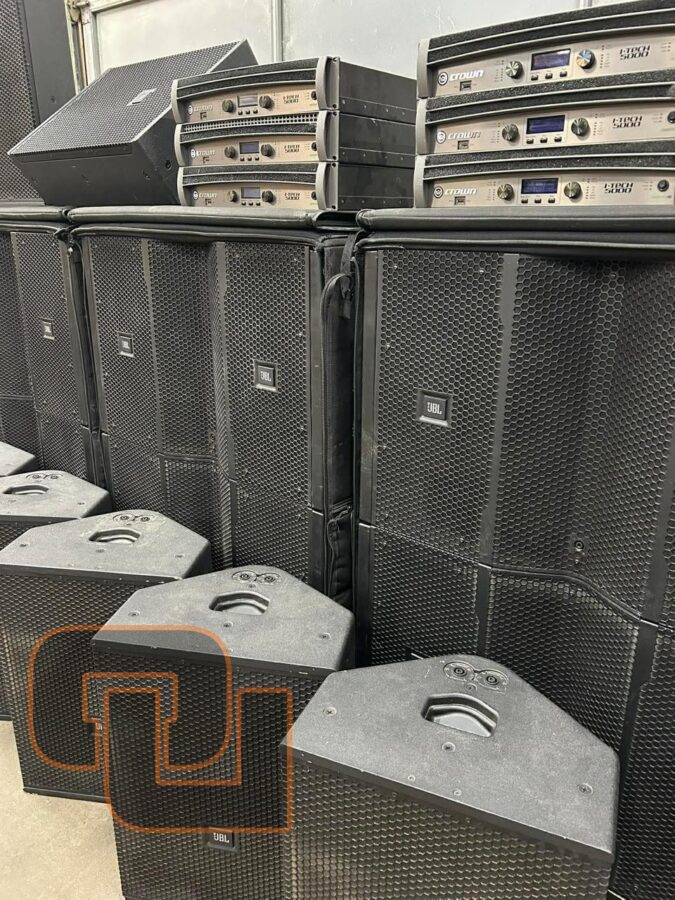

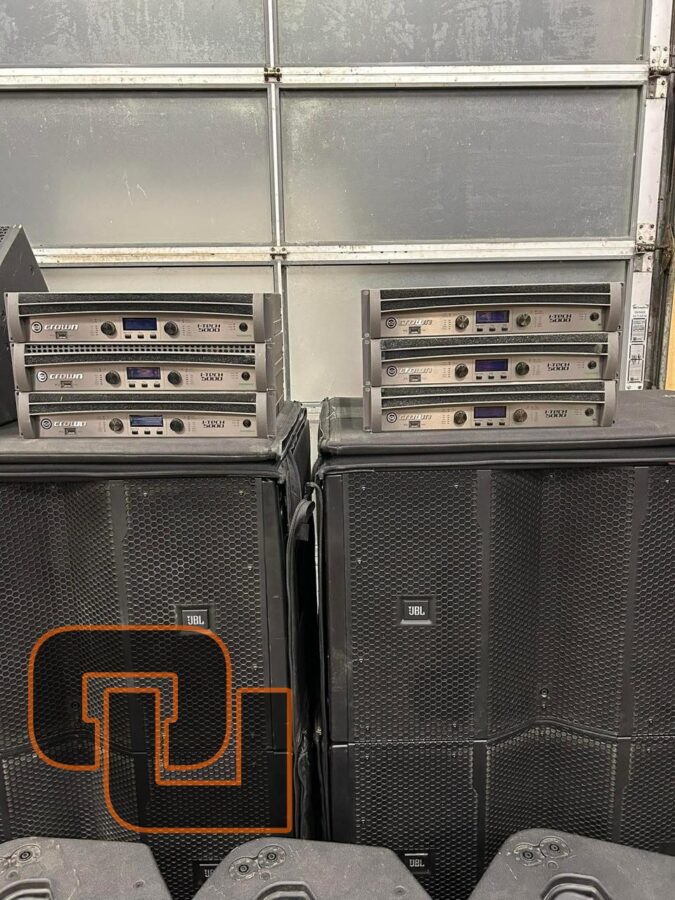

JBL VTX S25 – Suspendable Cardioid-Arrayable Dual 15″ Subwoofer

Companion sub for VTX V20. Ultra long excursion.

Acoustic:

• Frequency Range (-10dB): 26 Hz – 100 Hz (Preset: VTX S25 80)
• Maximum Peak Output: 139 dB (Preset: VTX S25 80)
• Coverage: Omnidirectional or Cardioid (when in cardioid array)

Transducers & Power:

• LF Drivers: (2) x JBL 2267H, 15 in, 4 in Dual Coil, Neodymium Differential Drive®
• Nominal Impedance: 2x 8 ohms (one per driver)
• System Amplification: Crown Audio I-Tech HD required

Physical:

• Enclosure: Finnish birch plywood, Black DuraFlex finish, ten integral recessed handles
• Dimensions (H x W x D): 566 mm x 909 mm x 630 mm / 22.3 in x 35.8 in x 24.8 in
• Net Weight: 61.8 kg (136 lbs)
• Rigging: Captive suspension hardware, front NL4 for rear-firing cardioid mode, M20 rod receptacle for F-series on top

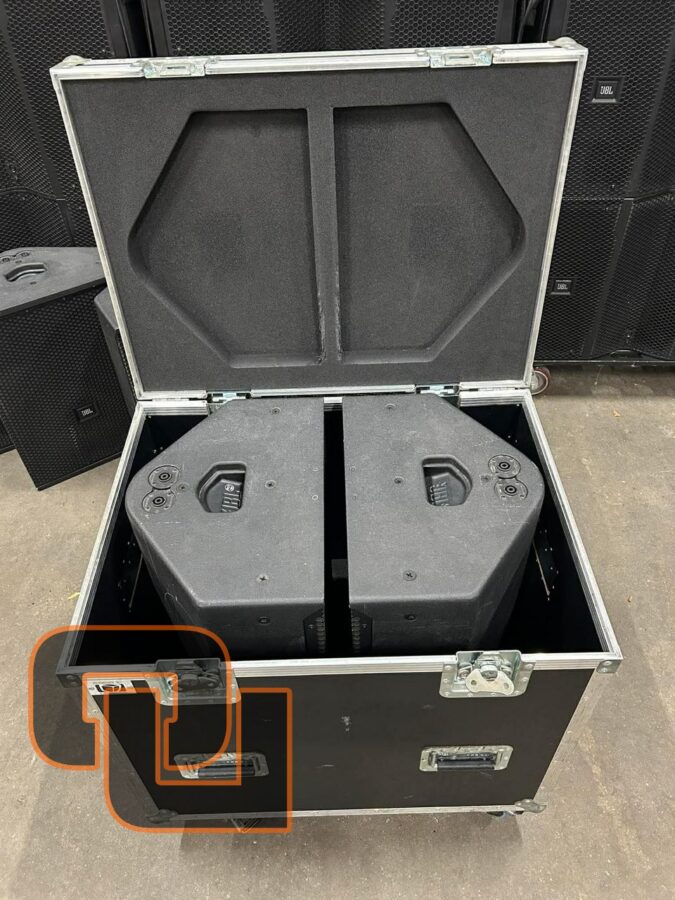

2. JBL VTX F15 – 15″ Bi-Amplified 2-Way Multi-Purpose

Acoustic:

• System Type: 2-Way Premium Multi-Purpose Loudspeaker with 15″ Differential Drive Woofer and D2 Dual Driver
• Frequency Range (-10dB): 43 Hz – 21.5 kHz (short throw mode, free field) / 42 Hz – 21.5 kHz (monitor mode, half-space)
• Frequency Response (±3dB): 59 Hz – 20 kHz (short throw) / 58 Hz – 20 kHz (monitor)
• Coverage Pattern: 90° x 50° Progressive Transition Waveguide
• Maximum Peak Output: 134 dB (Preset: VTX F15 80)
• Sensitivity: 98 dB LF, 108 dB HF

Transducers & Power:

• Components: 1 x 2265H 15″ Dual (3 in) Voice Coil Neodymium Differential Drive + 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
• Power Rating (AES 2hr): 1000W LF, 200W HF cont / 4000W LF, 800W HF peak
• Nominal Impedance: LF = 8 ohms / HF = 20 ohms

Physical:

• Enclosure: Symmetrical stage monitor (53° angle), 18mm 11-ply Baltic birch, DuraFlex™ finish
• Dimensions: 640.1 x 457.2 x 327.7 mm (25.2 x 18 x 12.9 in)
• Weight: 22.9 kg (50.5 lbs)
• Mounting: 35mm pole socket, 16x M10 points, optional F15-UB bracket

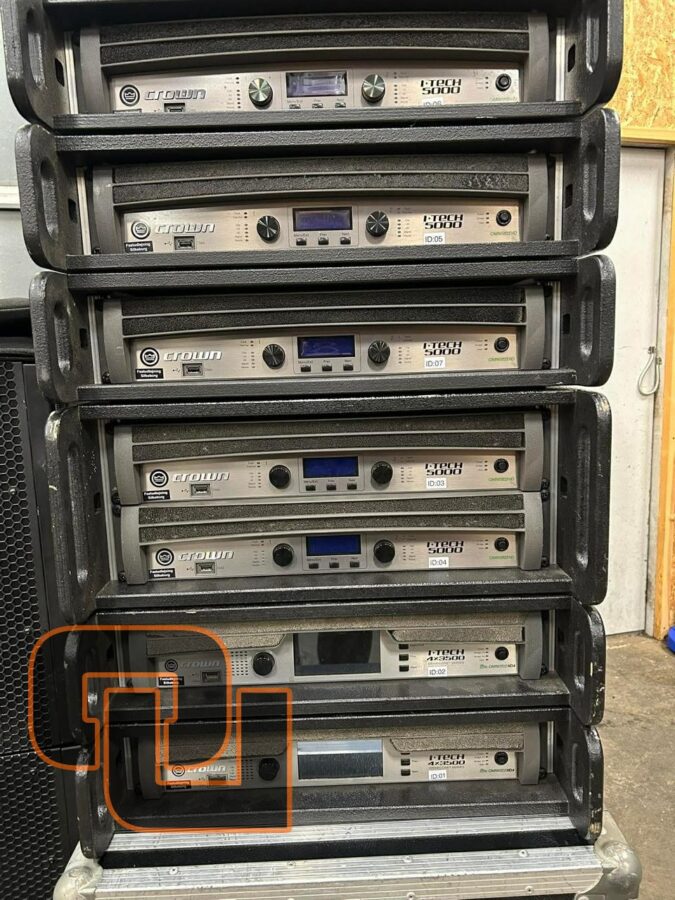

3. Crown I-Tech HD 5000 – I-Tech 5000HD

Touring flagship, built for VTX with BSS OMNIDRIVEHD inside.

Power:

• 2Ω Dual: 2000W per ch
• 2.7Ω Dual: 2800W per ch
• 4Ω Dual: 2500W per ch
• 8Ω Dual: 1250W per ch
• 4Ω Bridged: 4000W
• 8Ω Bridged: 5000W

Processing:

• DSP: BSS OMNIDRIVEHD™ – up to 64 filters, FIR and IIR
• Limiters: LevelMAX™ peak + RMS
• Inputs: Analog XLR, AES/EBU, CobraNet
• Network: HiQnet Ethernet, USB preset transfer

Performance:

• Class: 6th-gen Class-I BCA®
• Freq Response: ±0.25dB
• SNR: >112dB
• THD: <0.1% / IMD <0.2%
• Sensitivity: 1.4Vrms to 7.75Vrms selectable
• Crosstalk: >80dB

Physical:

• Dimensions: 19″ x 16.2″ x 3.5″ (48.3 x 41.1 x 8.9 cm) – 2U
• Weight: 12.7 kg / 28 lbs
• Power Supply: Universal 100-240V AC, 5 patents (3 on PSU alone)
