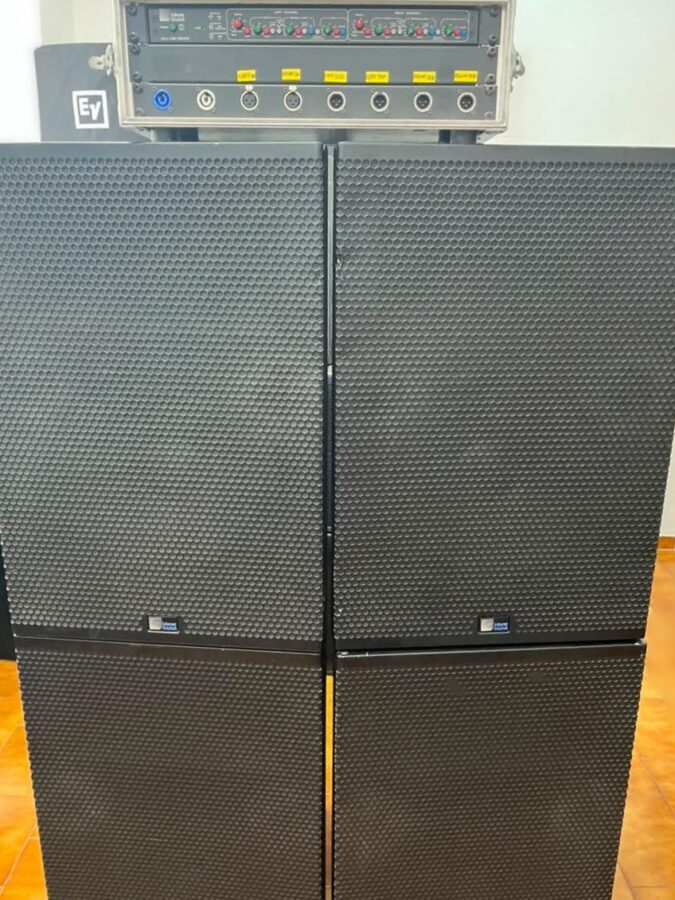

Meyer Sound CQ-2 – Self-Powered Loudspeaker (High-Q)

The CQ-2 is the narrow-coverage version of the CQ series. CQ-1 is Low-Q, CQ-2 is High-Q. Full-range self-powered with patented Constant-Q horn.

Acoustical:

• Operating Frequency Range: 35 Hz – 18 kHz
• Frequency Response: 40 Hz – 16 kHz ±4 dB
• Phase Response: 50 Hz – 16 kHz ±90°
• Max Peak SPL @ 1m: 139 dB (CQ-1 is 136 dB) – CQ-2 is louder due to narrower horn
• Dynamic Range: >110 dB
• Coverage: 50° Horizontal x 40° Vertical, Constant-Q
• Crossover: 900 Hz (acoustical)
• Horn Tech: Developed in anechoic chamber with 1° angular / 1/24 octave resolution. Constant beam width, uniform response inside beam, rapid attenuation outside, minimal side lobes

Transducers:

• Low: One 15″ cone driver, bass-reflex
• High: One 4″ diaphragm compression driver on 50°x40° horn

Electronics / Amp:

• Amplifier: Dual-channel 1240 Watt (620W per channel) – self-contained MP-series module
• Active balanced input, active crossover with optimized pole-zero filters
• TruPower Limiting (TPL) and Intelligent AC system
• RMS Remote Monitoring System optional – monitors level, power, driver status, limiter, temp on PC

Physical / Power:

• Dimensions: 21.00″ W x 30.00″ H x 22.20″ D
• Weight: 130 lbs (59 kg) / 150 lbs shipping weight
• Power: Intelligent AC auto-select 85-134V and 165-264V, 50/60 Hz, 700W RMS max, Surge to 275VAC safe
• Companions: Ideal with PSW-2, PSW-4, 650-P self-powered subs

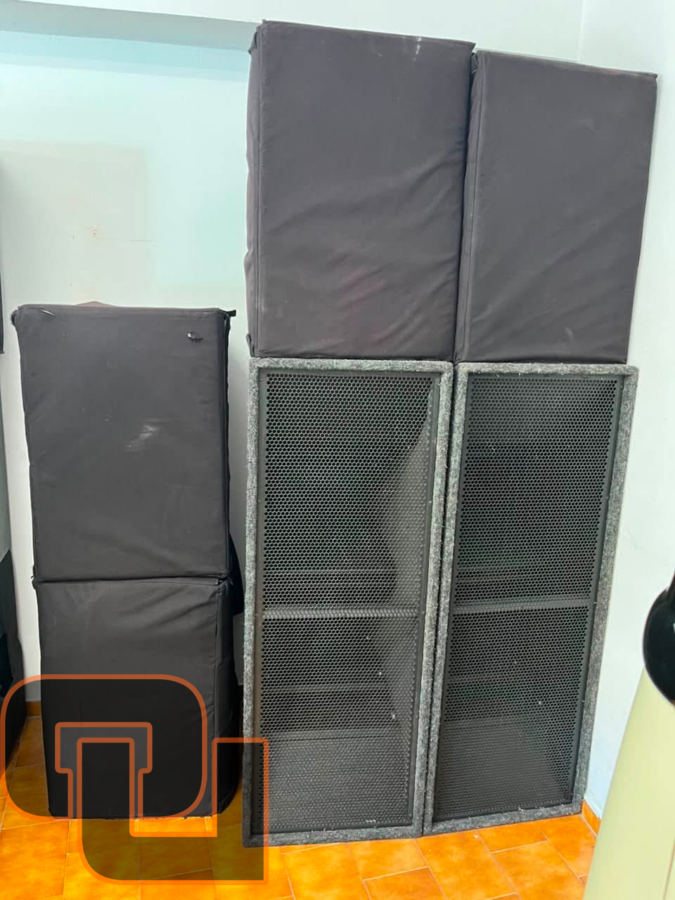

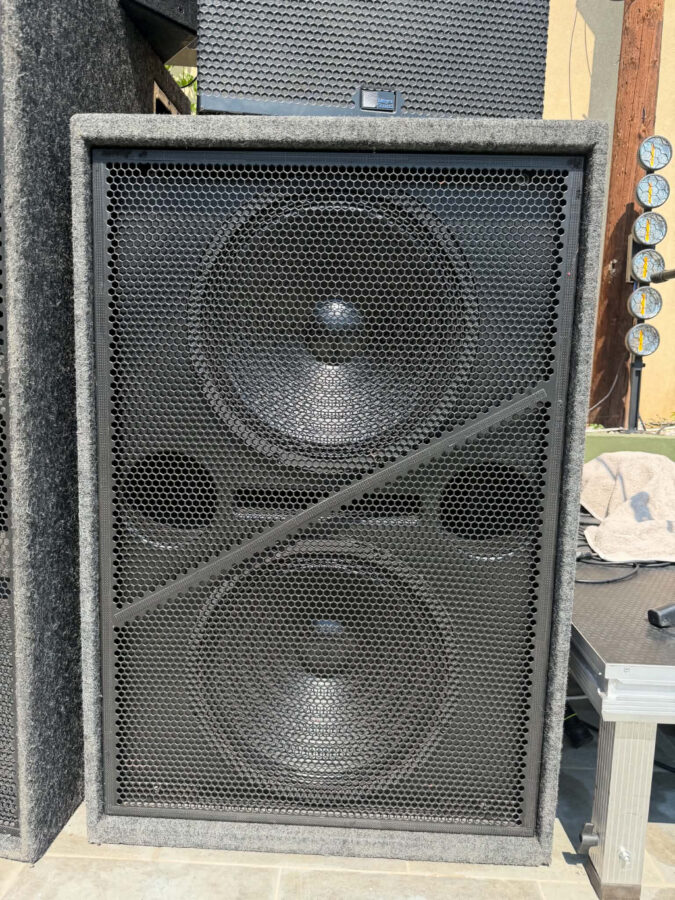

2. Meyer Sound DS-2P – Self-Powered Arrayable Mid-Bass

The DS-2P is a folded-horn mid-bass designed to supplement MSL-4 in the 40-160 Hz range, or work with MSL-3A, MSL-10A, 650-P subs. Always used in minimum pairs.

Electronics / Amp:

• Same MP-2 amplifier: 1240W (620W/ch)
• TruPower Limiting, Intelligent AC auto-select, low power compression <1dB vs 3-6dB conventional
• Optional RMS

Physical / Rigging:

• Weight: 221 lb (100 kg)
• Dimensions: Approx 30.00″ W x 30.26″ H x 21.97″ D, trapezoidal 7.5° angle for arrays
• Rigging: 6 rigging brackets (3 top / 3 bottom), interchangeable: aircraft pan fittings, 3/8″-16 nut plates, M10 x 1.5 nut plates, blank. Max recommended load 600 lb (273 kg) per cabinet with 5:1 safety
• Weather protection available with rain hood and protective treatment
• Crossover use: Designed to work with LD-1A / LD-2: 80Hz switch splits signal – below 80Hz to Sub output (650-P), above 80Hz to DS-2P

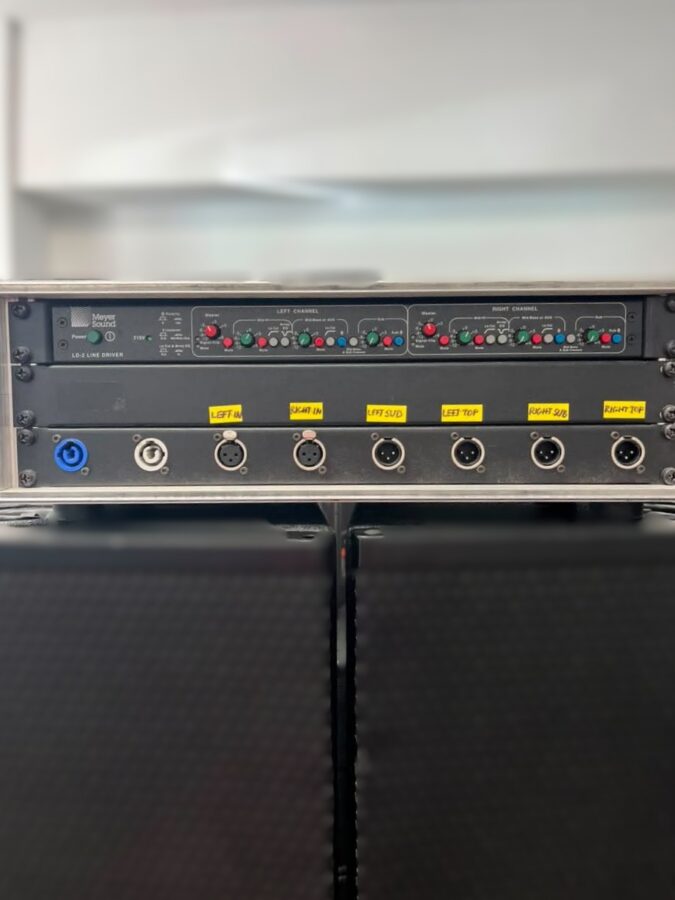

3. Meyer Sound LD-2 – Line Driver / Processor

Compact alternative to the larger LD-1A. A 1U line driver for integrating different Meyer self-powered loudspeakers into a complete system. Drives cable runs up to 1000 feet without instability or distortion.

Architecture:

• 2-channel device, 1 input per channel (Left/Right), 3 outputs per channel
• Outputs per channel: Mid-Hi, Mid-Bass/AUX, Sub

Controls per channel:

• Gain: -12 to +6 dB for each output section and master
• Mute: Individual Mute switch with LED for each output + Master Mute
• Mid-Hi Section: Array EQ filter -6dB at 220Hz, 0.6 octave bandwidth to correct low-mid rise from 3-5 MSL-4 array + Low Cut 160Hz, 12dB/oct, Q=0.8
• Mid-Bass/AUX: Low Cut 160Hz 12dB/oct + Polarity switch (0° / 180°)
• Sub: Polarity switch
• Crossover Switch: Mid-Bass & Sub Crossover at 80Hz – with switch in, divides at 80Hz between Mid-Bass and Sub outputs; switch out sends full-range to both
• Master: Gain, Mute, Signal presence / Clip LED
