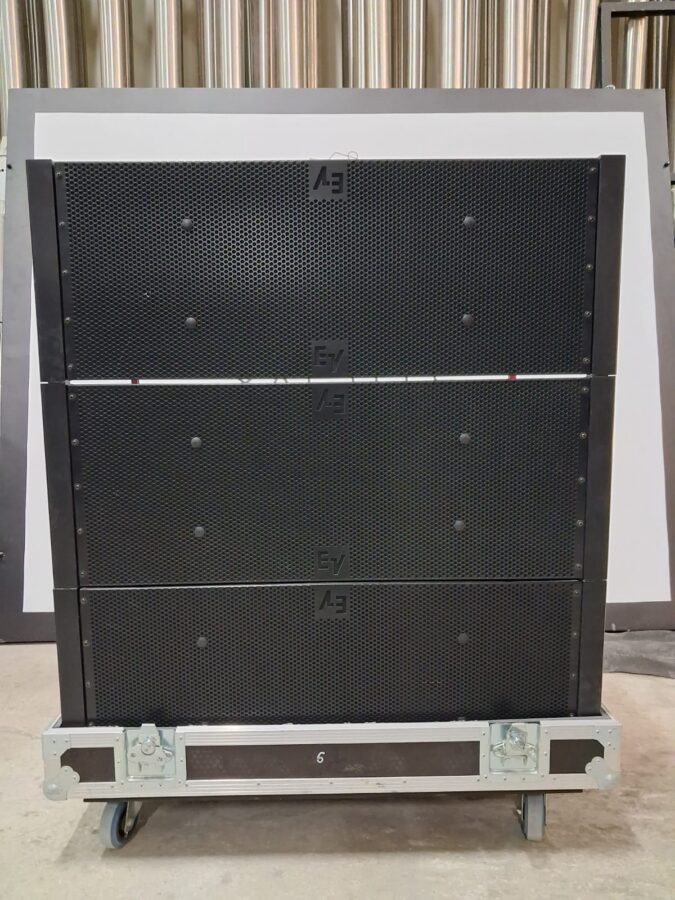

Electrovoice XLC127+

Compact high-output 3-way line-array enclosure designed for touring and installed sound reinforcement.

Key Features

• 120° horizontal coverage
• 3-way design:
  • 2 × 12″ LF
  • 2 × 6.5″ MF
  • 2 × ND6 HF compression drivers

Electrovoice XLC118

High-output flyable subwoofer designed specifically for XLC arrays.

Key Features

• Single 18″ EVX180A driver
• Flyable line-array subwoofer
• Compact footprint matching XLC arrays

Technical Highlights

• Frequency response: approx. 33 Hz – 400 Hz
• Sensitivity: approx. 102 dB
• Max SPL: approx. 130–136 dB peak

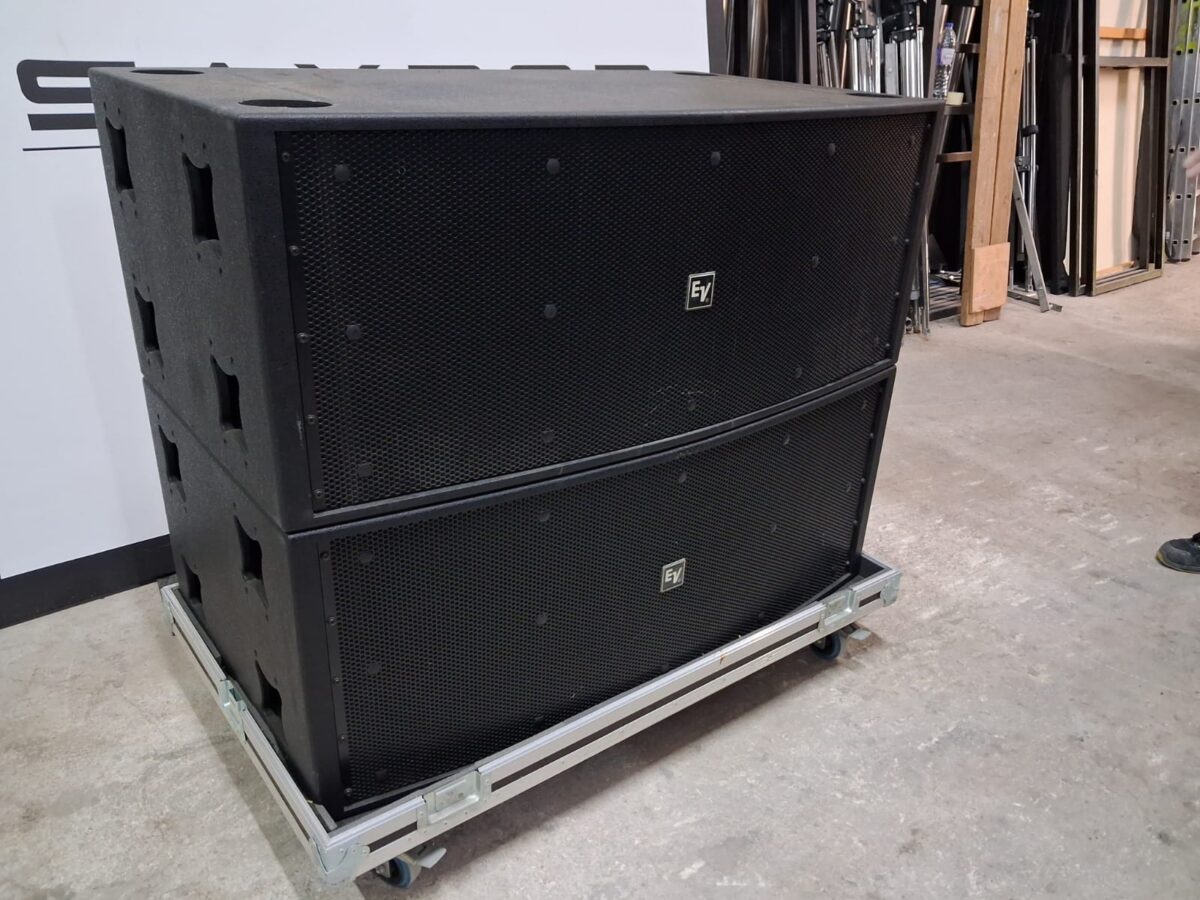

Electrovoice xsub

Dual 18” high power array sub

• Configuration

  • Type: Passive dual-18″ subwoofer
  • Drivers: 2 × 18″ EVX-180B woofers
  • Cabinet: Touring-grade plywood enclosure
  • Rigging: Integrated X-Line rigging system

  Acoustic Performance

  • Frequency response (-3 dB): 40 Hz – 400 Hz
  • Frequency range (-10 dB): 35 Hz – 500 Hz
  • Max SPL: 141 dB
  • Sensitivity: 104 dB (1W/1m)

  Power Handling

  • Continuous: 1200 W
  • Peak: 4800 W
  • Nominal impedance: 4 Ω

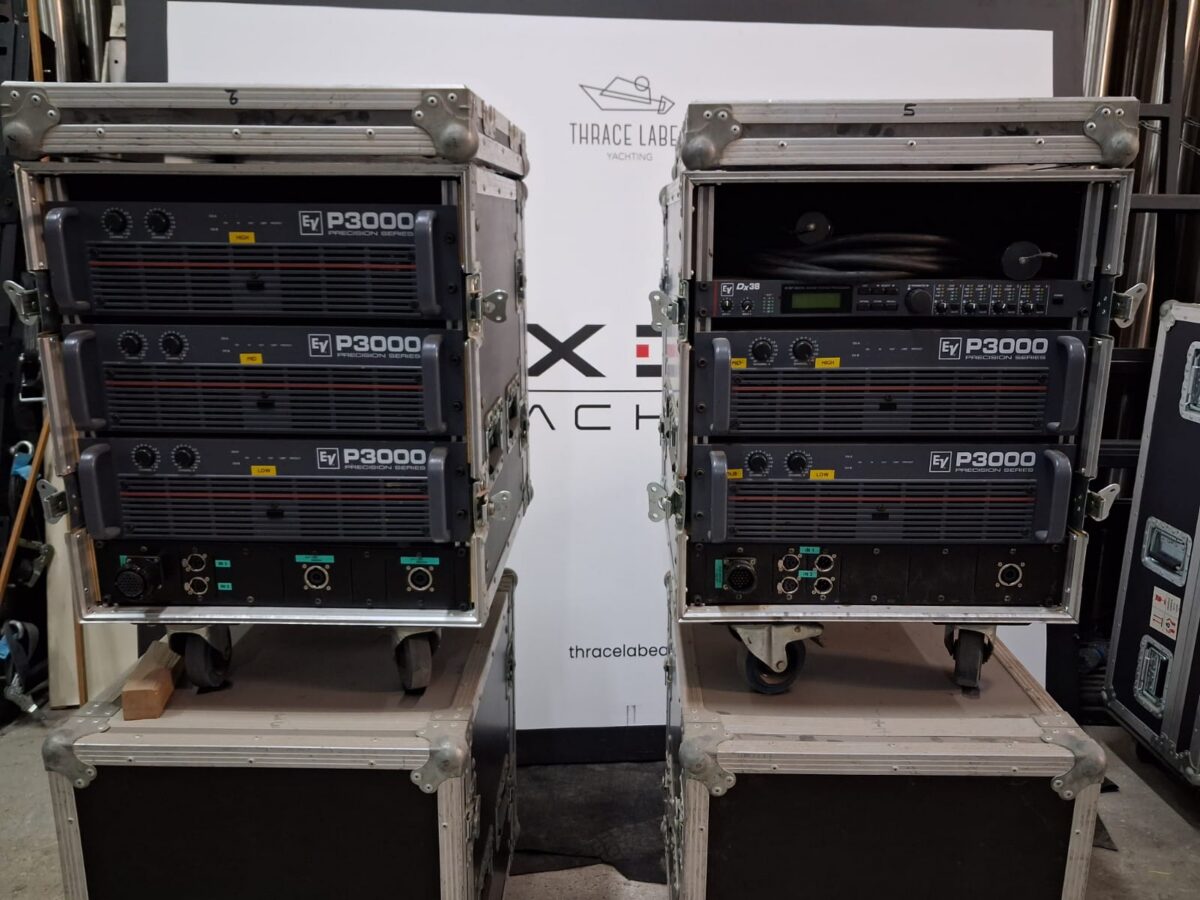

Electrovoice P3000

The P3000 is a heavyweight touring amplifier from the EV Precision Series, commonly used with XLC/X-Line systems.

Power Output

Stereo Mode

• 750 W/ch @ 8 Ω
• 1200 W/ch @ 4 Ω
• 1500 W/ch @ 2 Ω

1 kHz Dynamic Ratings

• 850 W/ch @ 8 Ω
• 1400 W/ch @ 4 Ω
• 1800 W/ch @ 2 Ω

Bridged Mono

• 2400 W @ 8 Ω
• 3000 W @ 4 Ω
