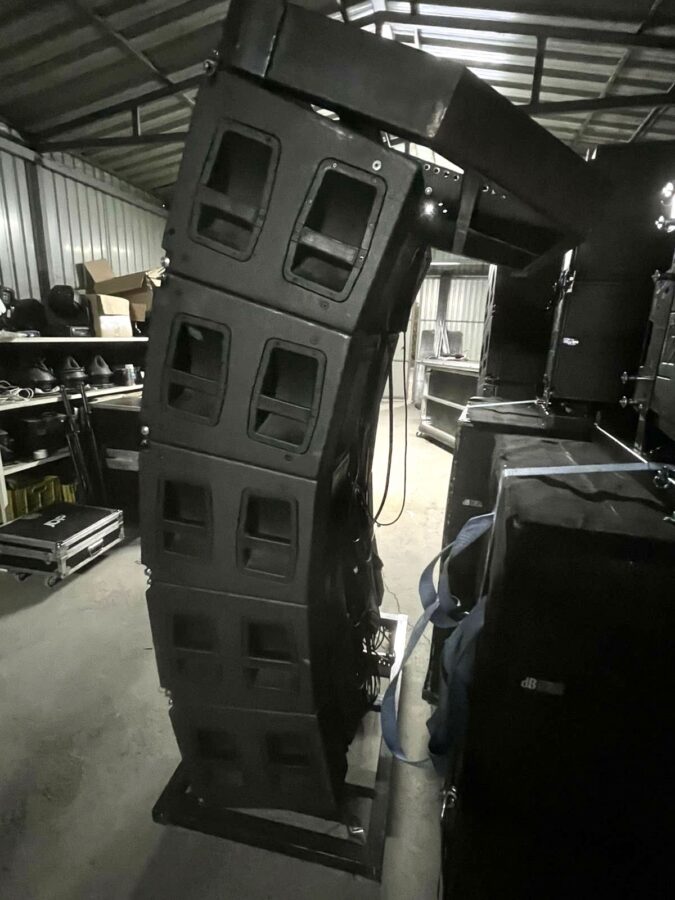

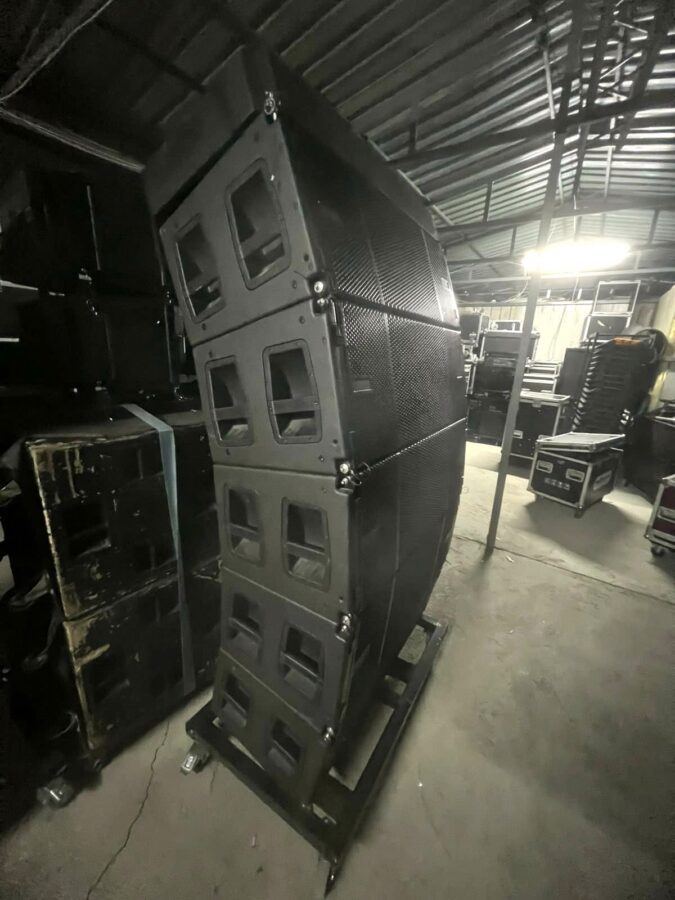

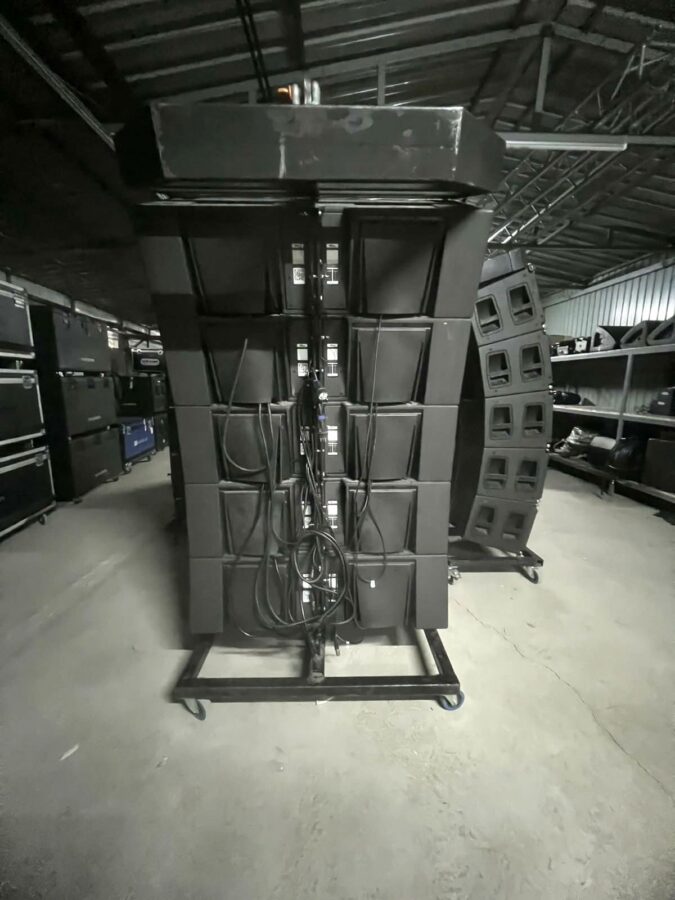

The dBTechnologies VIO L212 is a flagship, large-format 3-way active line array module designed for major touring applications, festivals, and large-scale permanent installations. It is known for delivering extreme sound pressure levels while maintaining one of the most compact and lightweight profiles in the dual-12” active line array class.
| Category | Technical Specification |
|---|---|
| Speaker Type | 3-Way Active Line Array Module |
| Amplifier | 3200W RMS (Class-D Digipro® G4) |
| Max SPL | 142 dB (per unit) |
| Frequency Response | 55 Hz – 18,600 Hz (-6 dB) |
| Horizontal Directivity | 90° |
| Weight | 54.4 kg (119.93 lbs) |
| Enclosure Material | Multiplex Baltic birch plywood with a polyurea coating |
The cabinet features an optimized acoustic design maximizing headroom and phase coherence:
- Low Frequencies (LF): 2 x 12” Neodymium woofers (3” voice coils) placed in a dipolar arrangement. This design provides an ultra-accurate transient response and extended low-end control.
- Mid Frequencies (MF): 4 x 6.5” Neodymium midranges (2” voice coils) in a central horn-loaded configuration to maximize acoustic efficiency and dispersion consistency.
- High Frequencies (HF): 2 x 1.4” exit Neodymium compression drivers (3” voice coils) mounted on a specialized waveguide to form a perfectly cylindrical wavefront for long-throw predictability.
