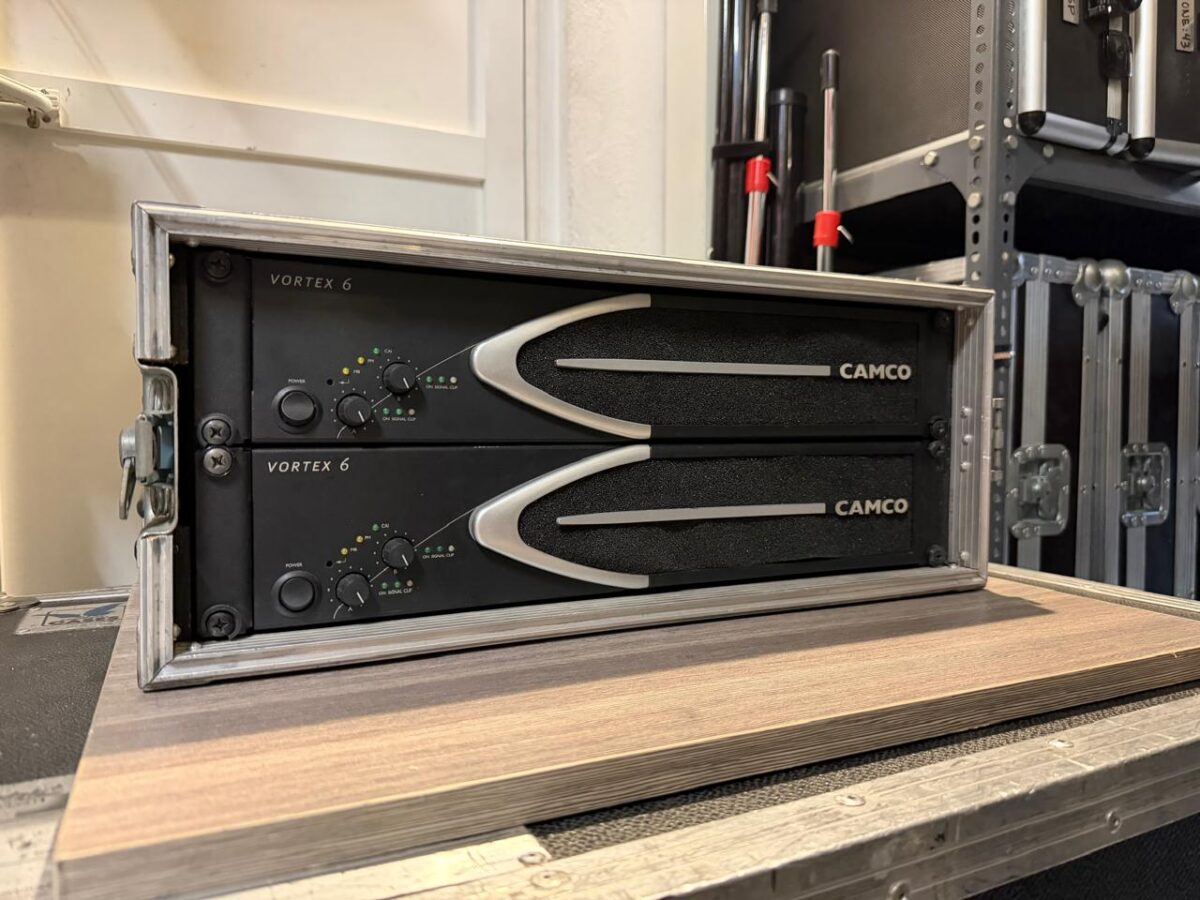

The Camco Vortex 6 is a professional high-power amplifier designed for touring and large-scale audio applications. It is known for its high power-to-weight ratio, delivering up to 6000W of total output in a compact 2U rack enclosure weighing approximately 12.4 kg (27 lbs).
The Camco Vortex 6 is an analogue power amplifier with a digital control system. It is not a “digital” (Class D) amplifier; it uses a high-efficiency analogue Class H topology.
Features & Connectivity
- Operating Modes: Supports Stereo, Bridge Mono, and Parallel Mono operations.
- Digital Control: Features a microprocessor-controlled signal path and is ready for remote monitoring via the Camco Audio Interface (CAI) over RS-485.
- Protection Circuits: Includes comprehensive safeguards such as over-temperature, DC protection, RF protection, and short-circuit monitoring.
- Input/Output: Balanced 3-pin XLR inputs (male and female for daisy-chaining) and 4-pole Speakon output connectors.
- User Controls: Rear-panel switches for selectable gain (26dB, 32dB, or 1.4V sensitivity) and a 3-step switchable peak limiter.
Reliability & Maintenance
The Vortex 6 is regarded as a touring “workhorse” with a reputation for natural sonic performance. However, long-term maintenance often involves checking for “snapped legs” on MOSFETs under the heavy heat sinks, a common mechanical failure point in older units.
