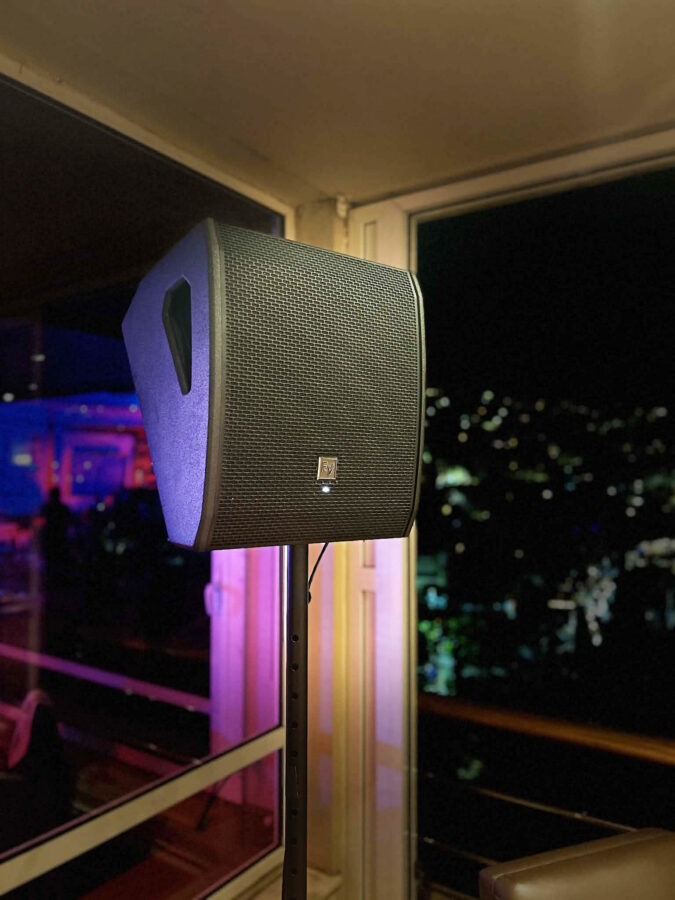

The Electro-Voice PXM-12MP is a highly versatile, 700-watt powered coaxial stage monitor engineered for musicians, vocalists, and live audio professionals. Developed in collaboration with Dynacord, it delivers clear, high-headroom point-source monitoring in a lightweight, low-profile package.

Key Features & Specifications

• Acoustic Performance: Utilizes a 12-inch woofer and 1.75-inch high-frequency driver aligned on a single axis to produce a coherent, even point-source image. It achieves a maximum SPL of 129 dB with a frequency response of 64 Hz to 20 kHz (-3 dB).
• Dispersion & Angles: Features a symmetrical 90° x 90° coverage pattern. When used on the floor, the physical enclosure sits at a 55-degree monitoring angle, projecting sound directly toward the performer.
• Onboard QuickSmart DSP: Includes an LCD screen for navigation. It comes equipped with four application presets (including two monitor modes, a tripod/main PA mode, and a guitar cabinet mode), a 3-band EQ, adjustable low-cut filters, and a tunable feedback notch filter.
• Inputs & Connectivity: Includes an integrated 3-channel mixer with two XLR/TRS combo inputs and a stereo RCA input. Output options consist of an XLR THRU (dry parallel split from Channel 1) and an XLR MIX OUT (summed signal from all inputs).
• Build & Portability: Constructed from rugged 15 mm plywood with an EV-Coat finish and powder-coated steel grille. It weighs only 13.5 kg (29.8 lbs) and includes recessed carrying handles and a built-in 35mm pole mount socket for stand mounting.
