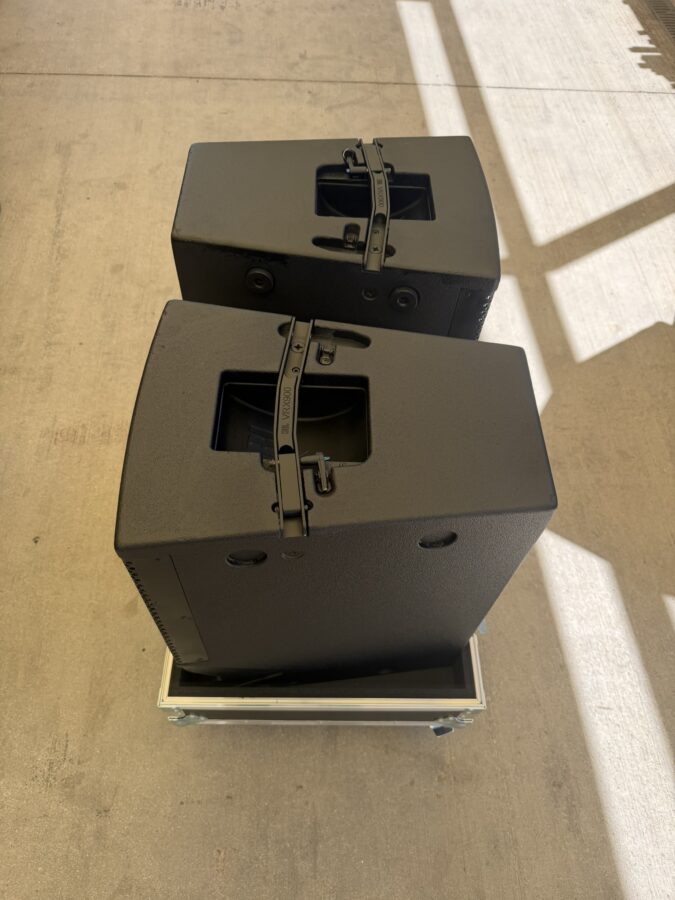

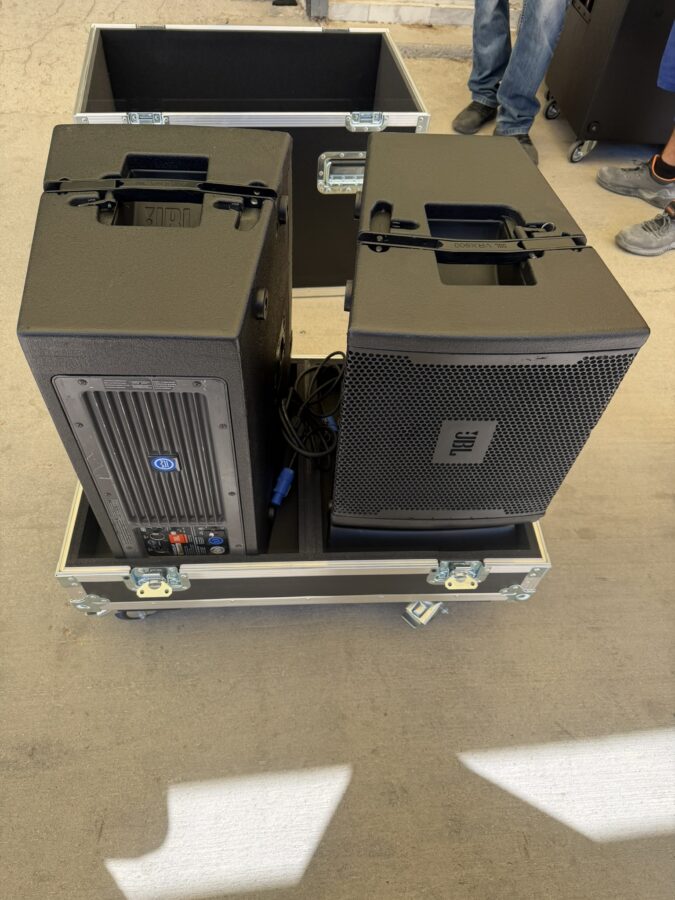

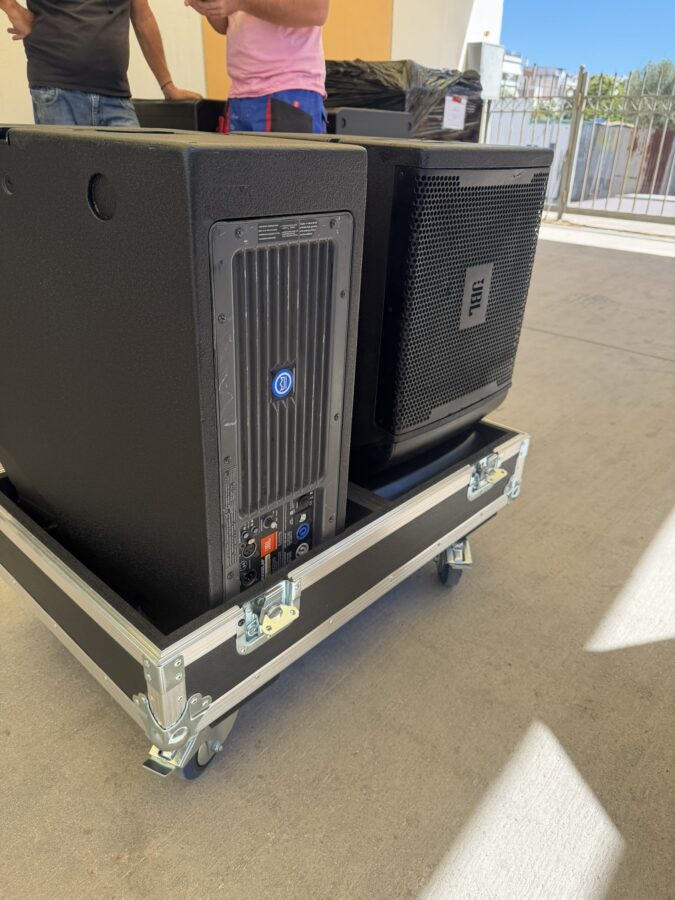

The JBL VRX932LAP is a 12-inch, two-way, powered line-array loudspeaker designed for mid-sized venues, corporate events, and live sound reinforcement. Operating on a constant-curvature line array design, it allows you to array multiple speakers together to form a seamless, highly cohesive wave field with uniform coverage.

Core Specifications

• Power Output: Built-in Crown DPC-2 amplifier module delivering 1750W Peak (Bi-amplified: 875W LF, 875W HF).
• Maximum SPL: 136 dB peak sound pressure level.
• Frequency Range: 57 Hz – 20 kHz (-10 dB); 75 Hz – 20 kHz (±3 dB).
• Coverage Pattern: 100° horizontal × 15° vertical nominal dispersion.
• Weight & Dimensions: 24.0 kg (53 lbs); 349 × 597 × 444 mm.
• Cabinet Material: Premium 15mm birch plywood finished in DuraFlex with an integrated rigging system.

Transducer Technology

• Differential Drive Woofer: Features JBL’s patented 2262FF 12-inch dual-voice-coil, neodymium woofer for lighter weight and high power handling.
• High-Frequency Drivers: Loaded with three 2408J 1.5-inch neodymium compression drivers mounted to a constant-curvature waveguide for precise, smooth high-end clarity.
