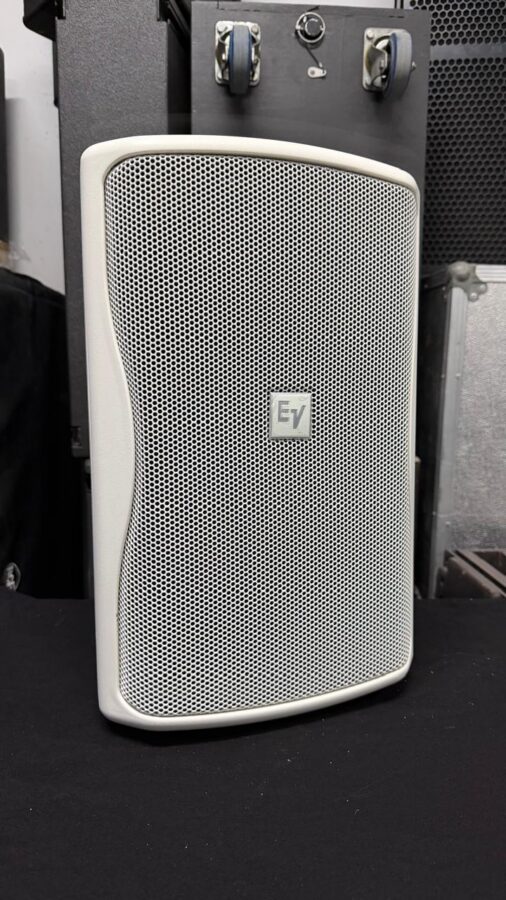

The Electro-Voice ZX1i-90W is an 8-inch, two-way passive installation loudspeaker designed for high-performance sound in both indoor and outdoor environments. The “i” designation indicates it is the installation version, which includes a dedicated mounting system, while the “W” typically specifies the white finish.
Key Specifications
- Audio Performance: Features a long-excursion 8-inch EV8L woofer and a 1-inch DH2005 titanium compression driver.
- Power Handling: 200W continuous, 400W program, and 800W peak at 8 ohms.
- Coverage: A 90° x 50° coverage pattern with a rotatable horn, allowing the speaker to be mounted either horizontally or vertically without losing its directional pattern.
- Sound Pressure: High sensitivity with a maximum calculated SPL of 123 dB.
- Frequency Response: 60 Hz to 20 kHz (-3 dB) and 48 Hz to 20 kHz (-10 dB).
Installation & Design Features
- QuickSAM Mounting: Includes an integrated heavy-duty Strong-Arm Mounting bracket that allows for quick “snap-in” installation.
- Weather Resistance: Built with a high-impact polypropylene enclosure and weatherized components (IEC 529 and IP44 rated), making it suitable for patios, stages, and arenas.

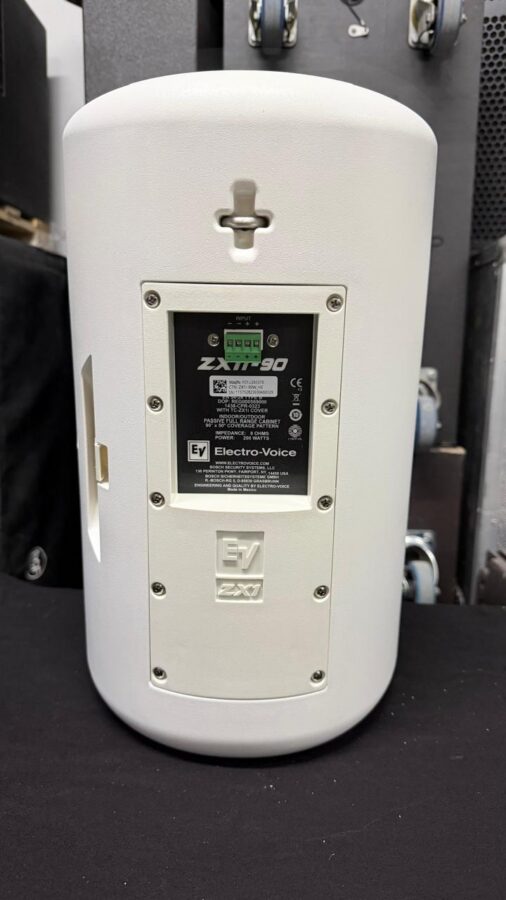

- Connections: Uses a 4-pin Phoenix-style connector for easy signal pass-through in permanent installs.
- Protection: Equipped with a passive crossover that includes full-bandwidth overload protection to prevent damage during high-output use.
