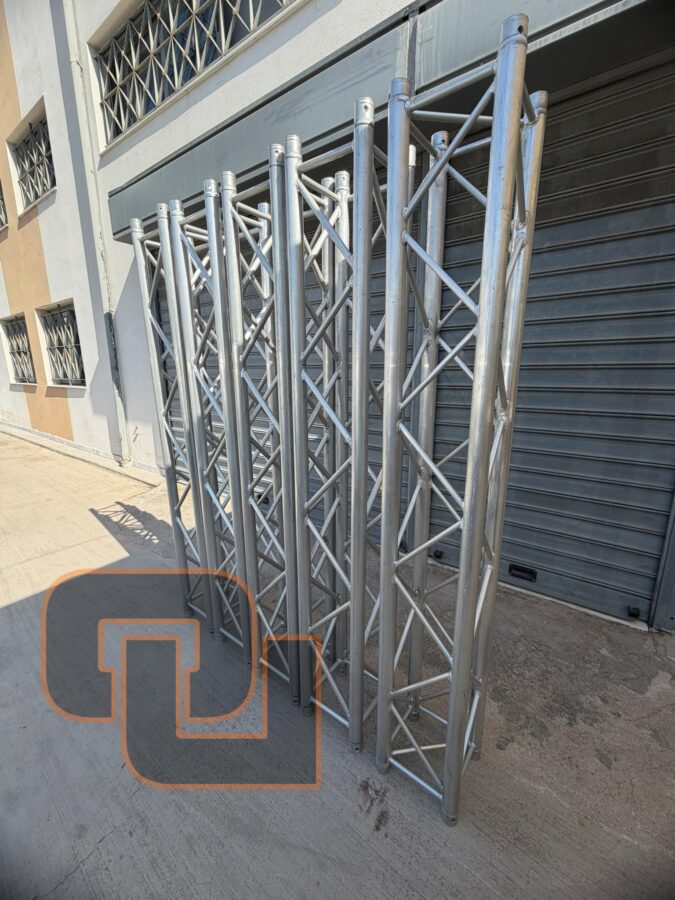

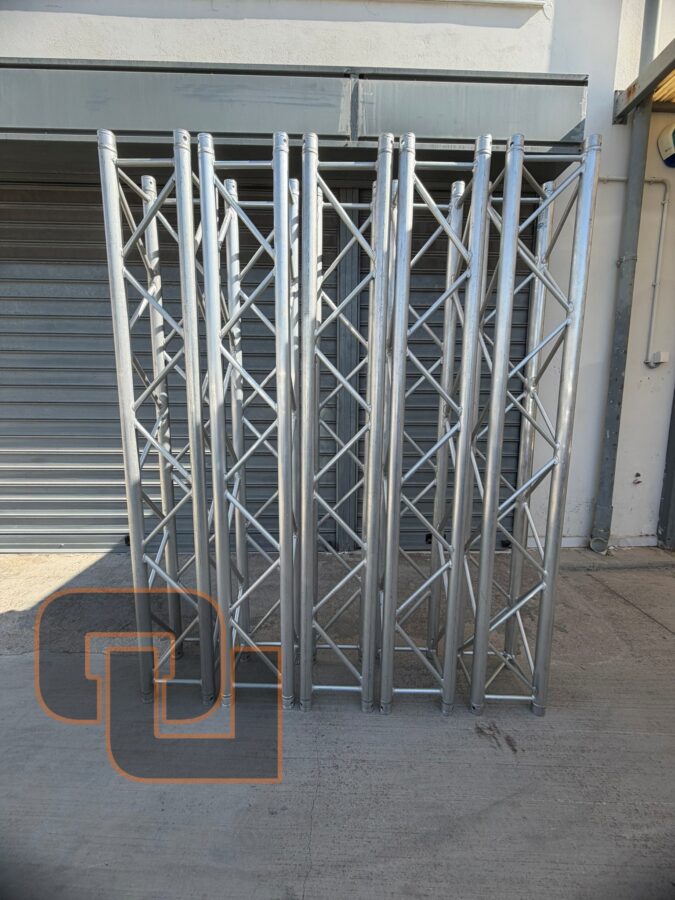

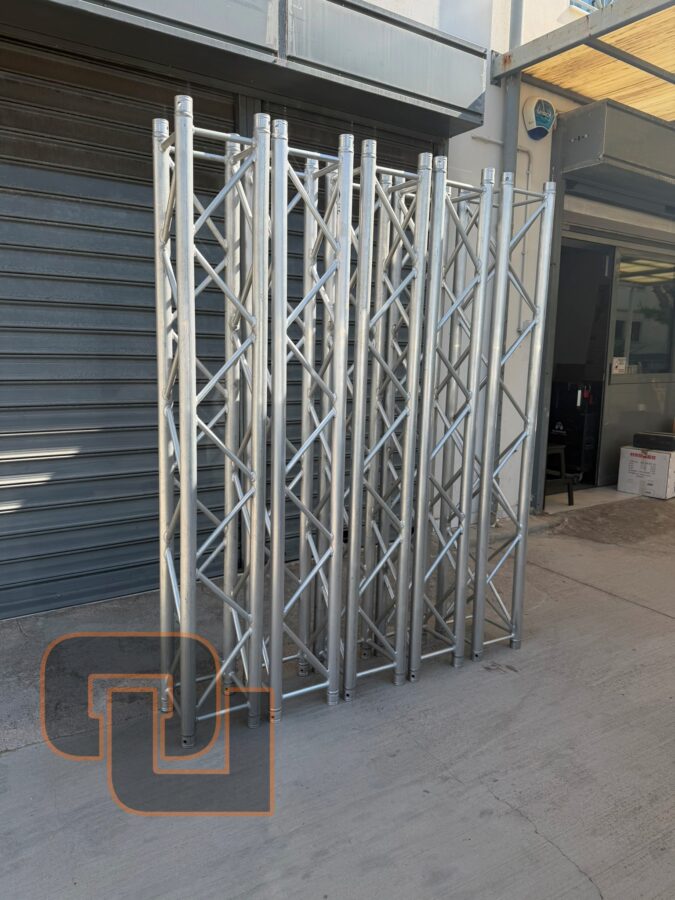

The Duratruss DT34-200 (most notably the standard DT 34/2-200) is a popular, highly durable 4-point square truss section with a total length of 2000 mm (200 cm)

Key Specifications

According to the technical details provided by manufacturer and distributor DuraTruss B.V., the technical metrics for the baseline model include:

• Dimensions: 2000 mm Length × 290 mm Width × 290 mm Height
• Main Tubes: 50 mm diameter with a 2 mm wall thickness (Note: Reinforced variants like the DT 34/3 and DT 34/4 offer 3 mm and 4 mm wall thicknesses respectively for heavier structural demands).
• Braces / Diagonals: 20 mm diameter with a 2 mm wall thickness
• Material / Alloy: High-grade Aluminium EN-AW 6082 T6 (AlMgSi1)
• Weight: Approximately 10.8 kg
• Certifications: TÜV approved and manufactured according to DIN 4112 and DIN 4113-1 standards
