Q1
A passive 2-way line-array cabinet designed for medium to large touring and installed sound systems.
Key specifications
- 2 × 10″ neodymium LF drivers
- 1.3″ HF compression driver
- 75° horizontal coverage
- 15° vertical coverage per cabinet
- Maximum SPL: 139 dB
- Adjustable splay angles from 0° to 14°
- Typically flown in arrays of 2–20 cabinets
- Frequency response approximately 60 Hz–17 kHz
Q7
A passive 2-way point-source cabinet using the same drivers as the Q1 but with a rotatable horn.
Key specifications
- 2 × 10″ LF drivers
- 1 × 1.3″ HF compression driver
- 75° × 40° constant-directivity horn
- Rotatable horn for horizontal or vertical mounting
- Power handling: 400 W RMS / 1600 W peak
- Frequency response: 60 Hz–17 kHz
- Weight: 22 kg
- Maximum SPL: 138 dB

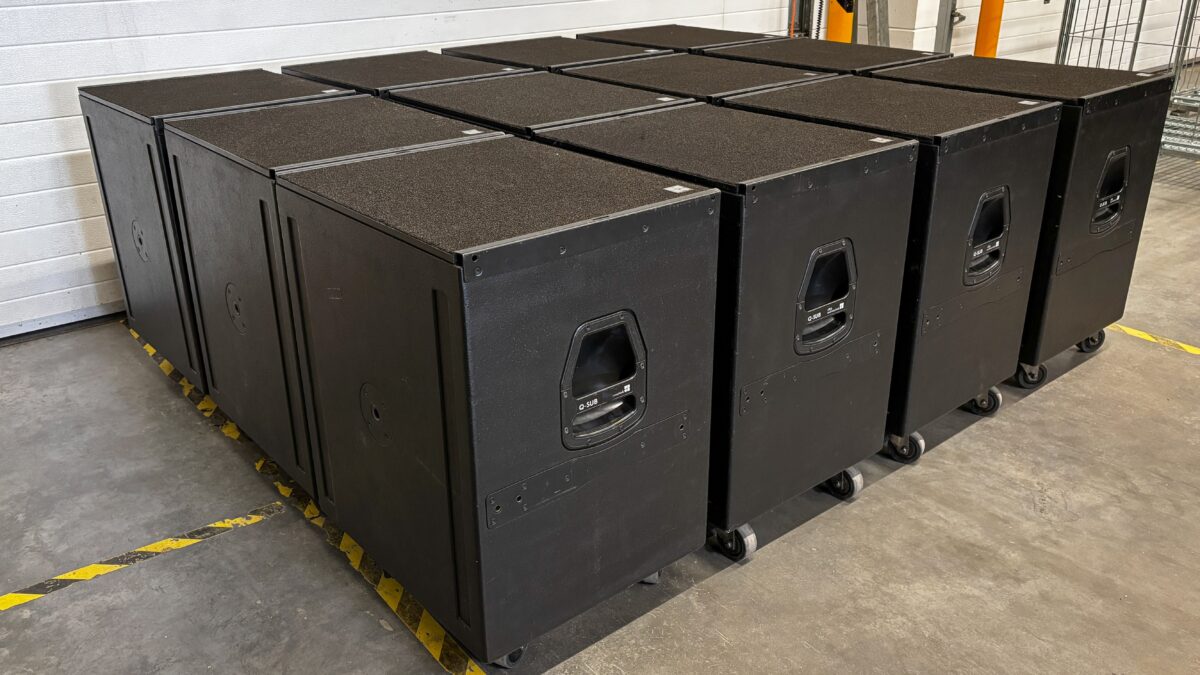

Q-SUB
The dedicated low-frequency cabinet for the Q-Series.
Key specifications
- Single 18″ long-excursion driver
- Bass-reflex enclosure
- Designed to match Q1 and Q7 acoustically and mechanically
- Can be flown with Q1 arrays or ground-stacked
- Operates with D12 Q-SUB presets and SenseDrive technology
- Typical operating range extends down to approximately 40 Hz
D12
The original amplifier platform used extensively with the Q-Series.
Key specifications
- 2-channel DSP amplifier
- 2 × 1200 W into 4 Ω
- 3U rack height
- Built-in loudspeaker presets for all d&b systems
- 4-band parametric EQ per channel
- Delay up to 340 ms per channel
- SenseDrive technology for improved driver control
- Auto-switching power supply (120/230 V)
